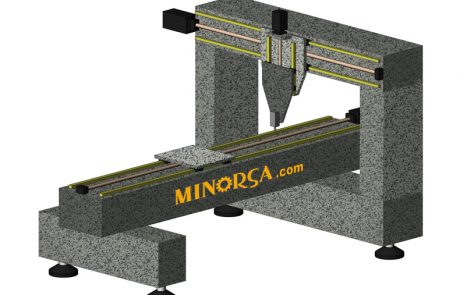

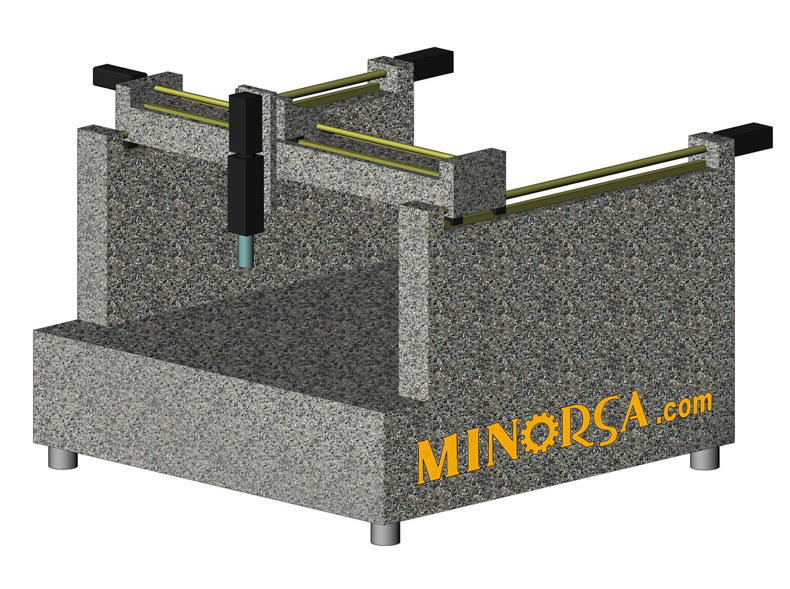

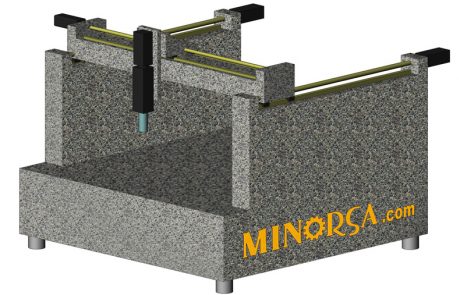

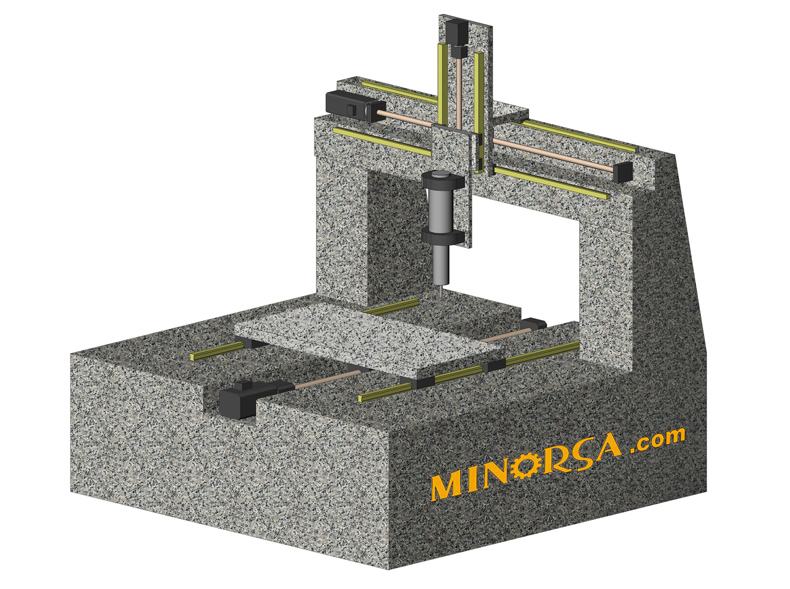

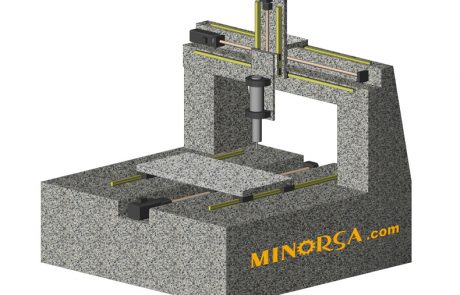

High Precision Frames on Granite
About
Through long-standing evidence of these 2 granites for end purposes, and as equipment builders in this cutting and supply specialty, we can propose proportions of measurements of your claim, we can use work surfaces with ground surface. Drilled structure to receive sliding bars, other solutions that are identified and identified, due to non-standardization of supply, we chose to summarize our possible supply, analyzing each case with due attention.
Technical Features
We work with two granites, depending of the length required. On each proper case will be checked the viability.
On every supply the granite used have been extracted over more 10 years to provide material stability.
Granite comercial name – AZULALIA
Compression breaking load – 1,390 kg/cm2
Compression breaking load after freezing test – 1,433 kg/cm2
Bending strength – 357 kg/cm2
Volumetric weight – 2,685 kg/mt3
Water absorption at Nap conditions – 0,17 %
Apparent porosity – 0,45 %
Thermal linear expansion coefficient 0/80°c – 6,7
Abrasion test – 0,4 millimeters
Impact test (minimum fall height – 75 cm
Surface color – Dark Blue/Gray with Black Pigment
Granite comercial name – FORTE ROSA
Compression breaking load – 2,140 kg/cm2
Compression breaking load after freezing test – 2,046 kg/cm2
Bending strength – 155 kg/cm2
Volumetric weight – 2,642 kg/mt3
Water absorption at Nap conditions – 0,20 %
Apparent porosity – 0,55 %
Thermal linear expansion coefficient 0/80°c – 9,8
Abrasion test – 0,3 millimeters
Impact test (minimum fall height – 55-60 cm
Surface color – Dark Pink with Black Pigment
Saw on Mono Bridge Concept
Working Types
 |
 |
 |
|---|---|---|
| Multi-Axis Work Can profile in as the draw |
Ability to Exchange the Saw Tools By the use of Iso tolls or head change can improve the process to input more cutting cycles |
Carrossel Tool Change Provide the work with multi-tools, best to use on spindle |
The Hercules Series on Multi-Purpose
Made on Measure Requests
