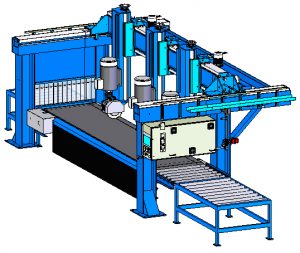

Double Head Bridge Saw
About
It does more than duplicate production. It is two cuts in one single movement, the rams in a totally autonomous way and it is able to programme from Z-axes cuts, to frame works.
Technical Features
WITH ONE OR TWO AUTOMATIC TABLES CAN BE SQUARE BENCHS, CAN IMPROVE THE PERFORMANCE WITH SEVERAL ITEMS
✓ Diameter of disc permissible – 750 millimeters (mm) to 1,300 mm (slab model = 600 mm)
✓ Maximum cutting height – 510 mm ( Flange support 280 mm ) / 550 mm ( Flange support 200 mm ) / on slab model – 180 mm with 600 mm disc
✓ Maximum cutting height with the cutting heads at 45º – 350 mm / 16º = 485 mm
✓ Vertical displacement of the cutting head – Z axis = 970 mm or 1,170 mm (slab model = 360 mm)
✓ Cutting capacity – X axis = 3,730 mm; Y axis = 3,550 mm (for + optional)
✓ Minimum distance / maximum between heads – 170 mm / 3,600 mm
✓ Power admitted cutting motor – 22 Kw (30 Hp) / 30Kw(40 Hp) / slab model = 11 Kw (15 Hp) x2
✓ Approximate minimum weight – 6,500 kg to 9,000 kg
✓ Maximum height required for operation – 4,3 meters or 4,8 meters (slab model = 2,9 meters)
✓ Inside distance between headwaters (for + optional) – 5,4 meters
✓ Maximum cutting speed shift – 37 meters/minute
✓ Minimum peripheral speed for cutting – 26 or 42 meters/second
Main Feature & Related Equipment
Particular Cad Draw Programing
With the internal use of cad system the machines can cut surfaces without outsides recurses
Can also be adapted to other machines & if you intent please see any follow machine
Several Length on Bridge
We have available an selection of bridge length and also head length, gives the possibility to increase the diameter and also the cutting travel.
Can also be adapted to other machines & if you intent please see any follow machine
Double Cutting Individual Head
Can also be adapted to other machines & if you intent please see any follow machine
Increase Potential
Can also be adapted to other machines & if you intent please see any follow machine
Common Parts
Can also be adapted to other machines & if you intent please see any follow machine
Concrete Pillars
We have available an selection of bridge length and also head length, gives the possibility to increase the diameter and also the cutting travel.
Can also be adapted to other machines & if you intent please see any follow machine
Metallic Pillars
Can also be adapted to other machines & if you intent please see any follow machine
Lathe Body to Bridge Saw
Can also be adapted to other machines & if you intent please see any follow machine
Tilt Bench
Can also be adapted to other machines & if you intent please see any follow machine
In and Out Belt Table
Can also be adapted to other machines & if you intent please see any follow machine
Belt Bench
Can also be adapted to other machines & if you intent please see any follow machine
Edge Polishing
Can also be adapted to other machines & if you intent please see any follow machine
Second Bench
Can also be adapted to other machines & if you intent please see any follow machine
Bench High Dimension, Can be Also in Square Shape
Can also be adapted to other machines & if you intent please see any follow machine
Lathe Body Assemble on Bench
Can also be adapted to other machines & if you intent please see any follow machine
Laser Focus to Alignment
Can also be adapted to other machines & if you intent please see any follow machine
Pine Wood Table
Can also be adapted to other machines & if you intent please see any follow machine
More Displacement on Lateral Pillars
Can also be adapted to other machines & if you intent please see any follow machine
Water Treatment Installations
Can also be adapted to other machines & if you intent please see any follow machine
Gallery
Works Machine
Water Treatment System
Allows the factory work with clean water, works in closed circuit the mud can be separated with an small humidity, theres several models adopted to all sizes of factory’s
Balustrade And Columns In Round Shape
Can do with proper cad program worked stones in several materials and also forms, like final quality, that one can be perfect, ready to polish
Execute 90 Degrees Cutting Angle
In automatic execution can program both cutting sides
Tilting Saw For Angles Cutting
Theres two systems for angle cutting, the tilt head it’s the most cheaper, rentable and gives perfect finishing, the dual movement of axes can do the process also with de saw inclination axe
Surface Profiling
With one axe movement each time can produce forms by draw in an proper program on the machine
