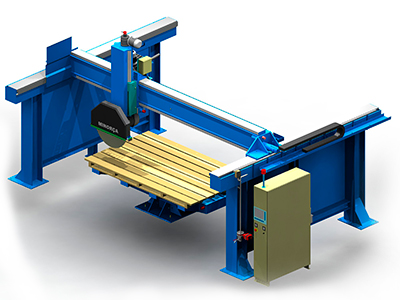

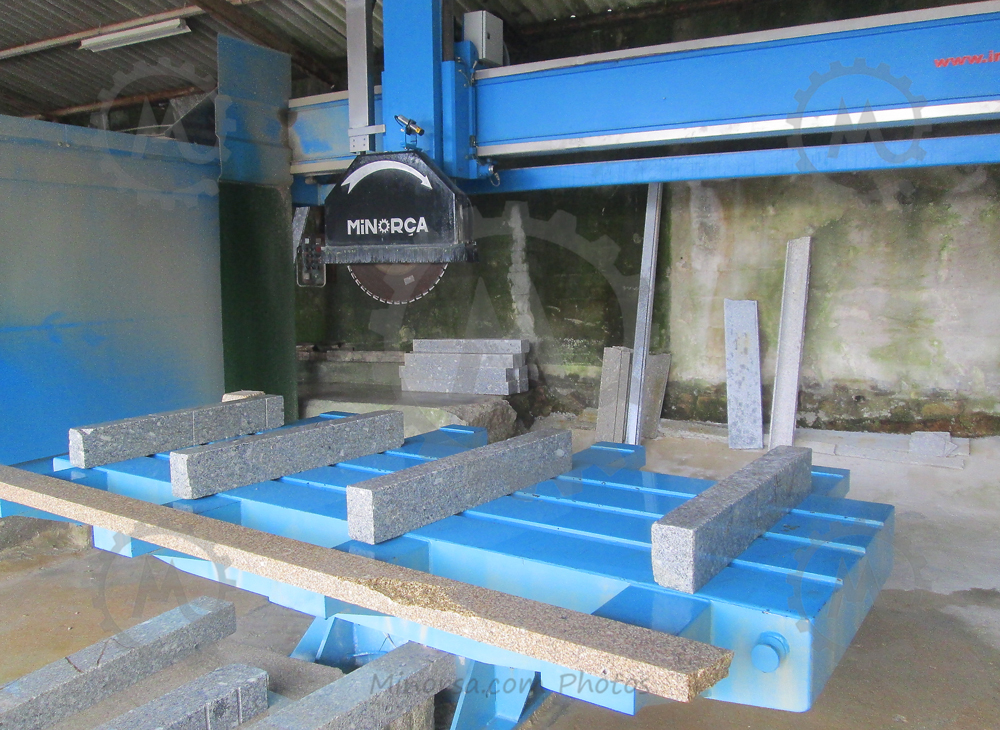

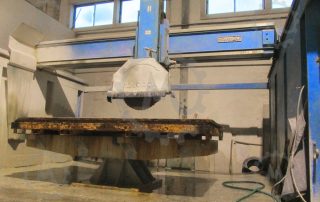

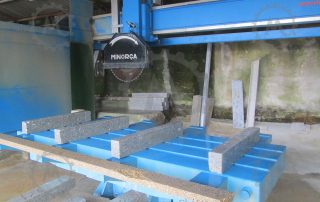

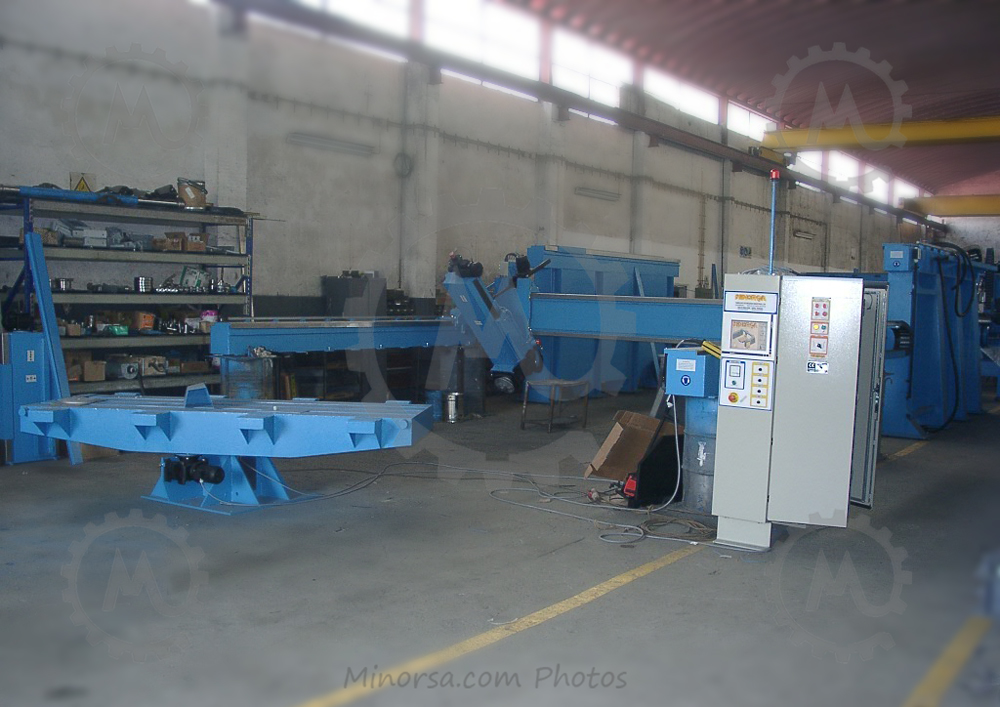

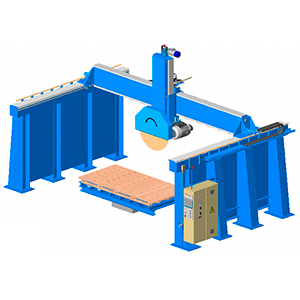

Bridge Saw With Automatic Bench
About

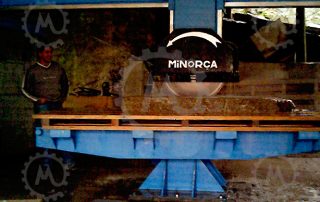

Its table with automatic rotation allows carrying out several types of works.

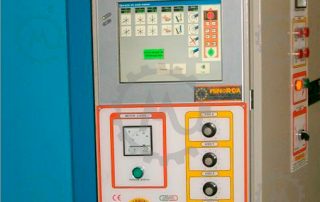

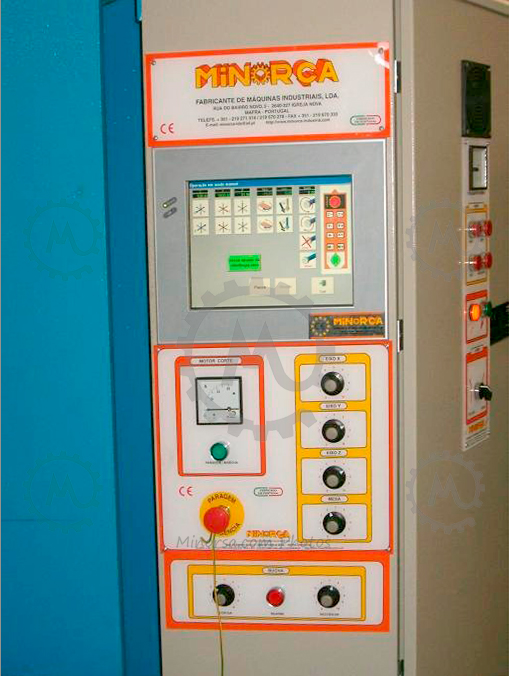

It sets the angle to which the table will rotate, and it draws the parts to be worked on using a very simple and user-friendly programme.

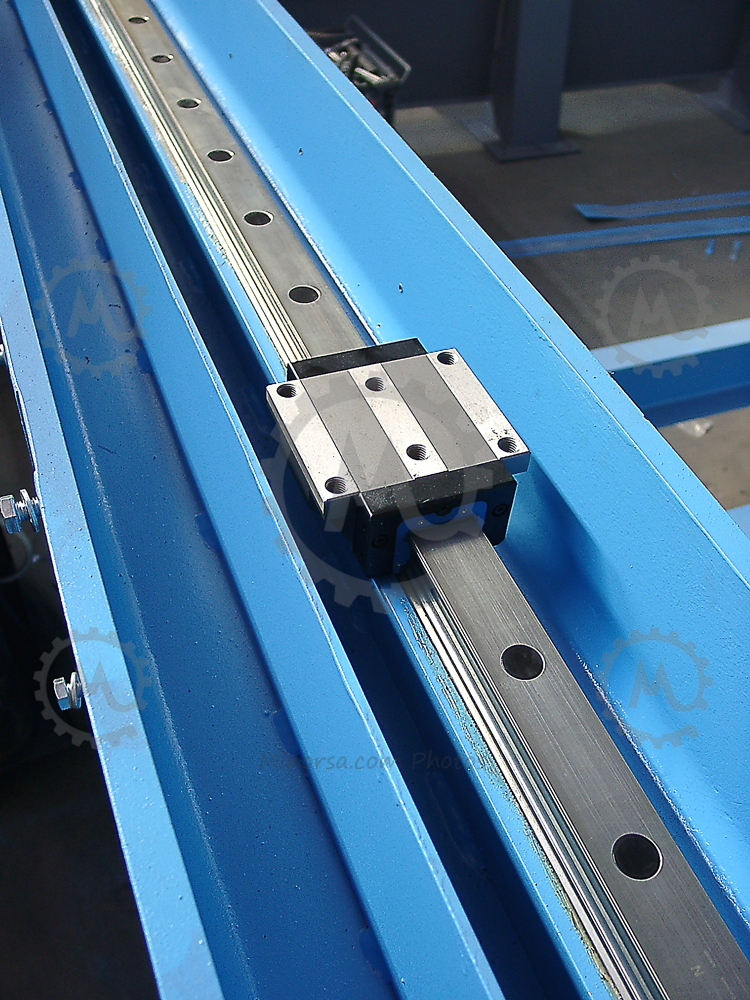

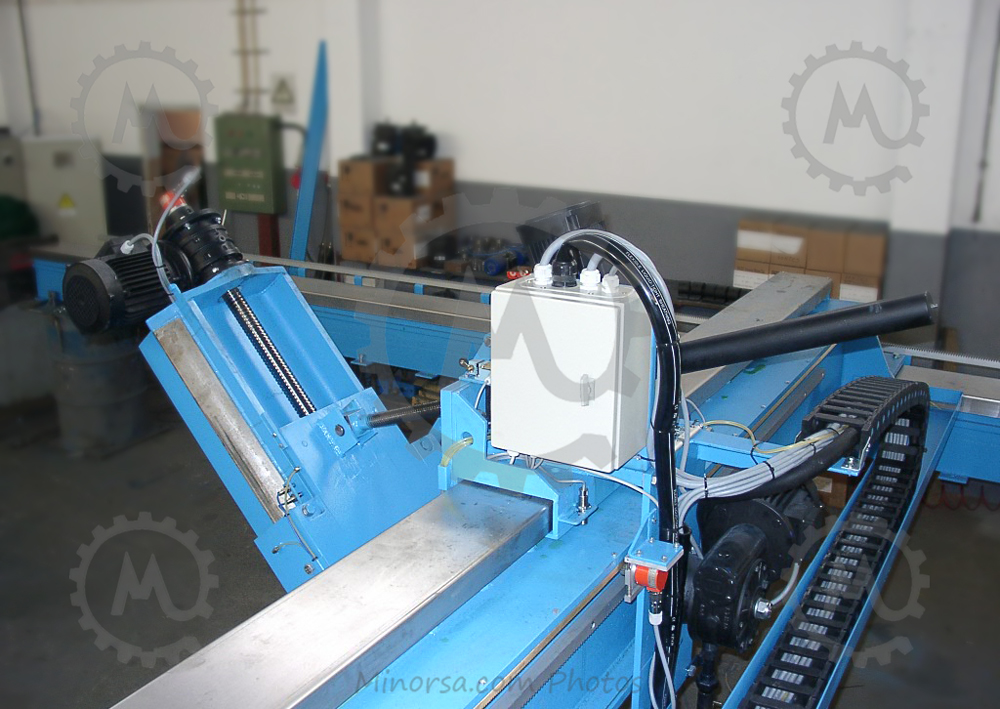

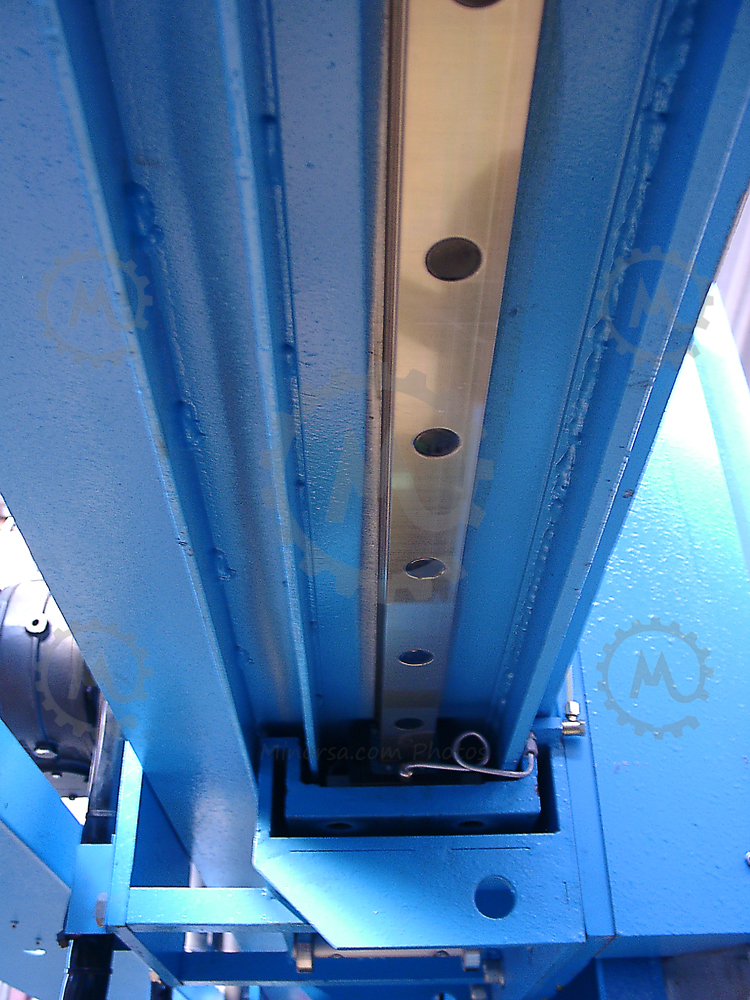

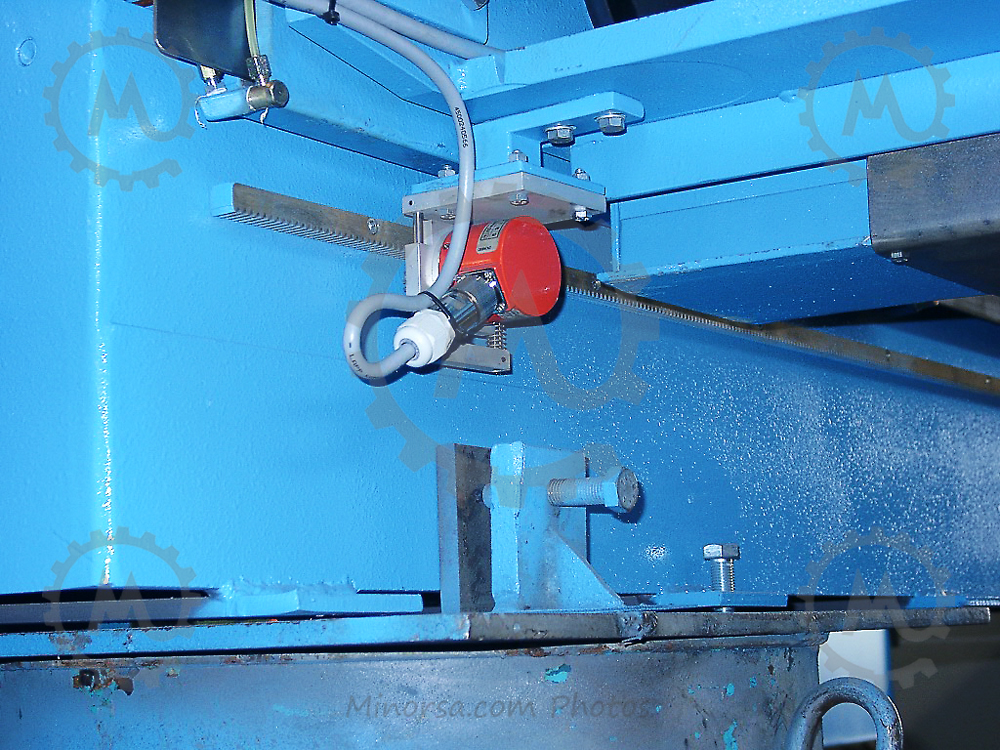

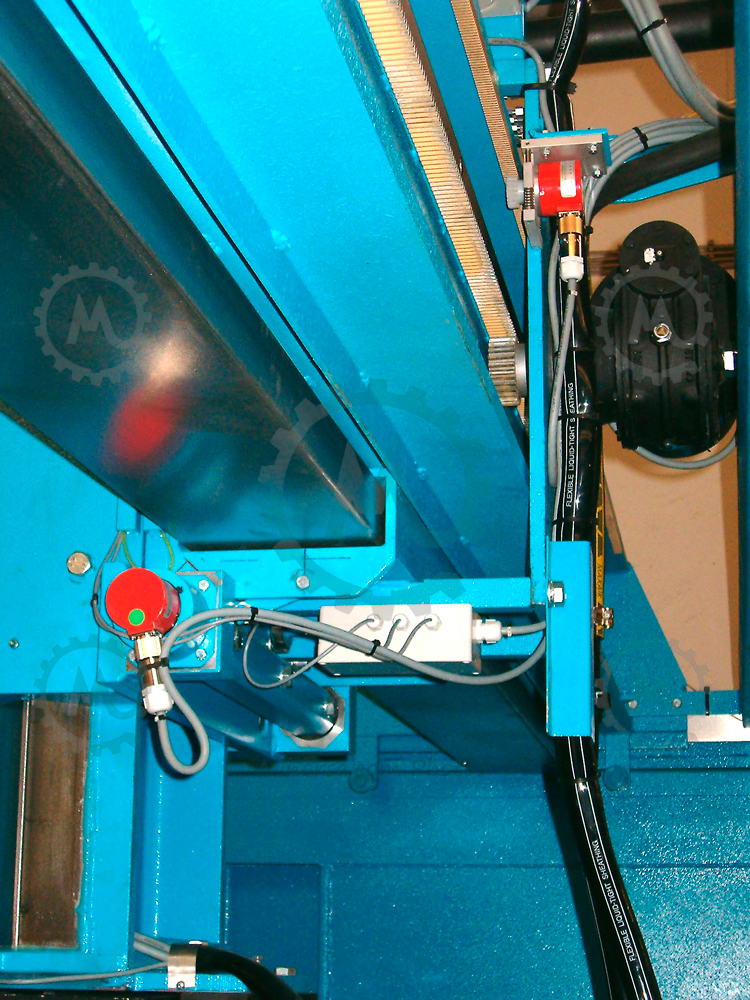

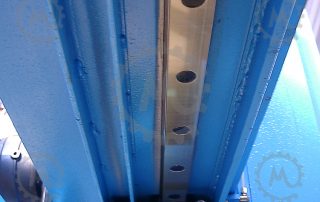

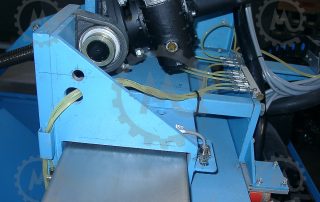

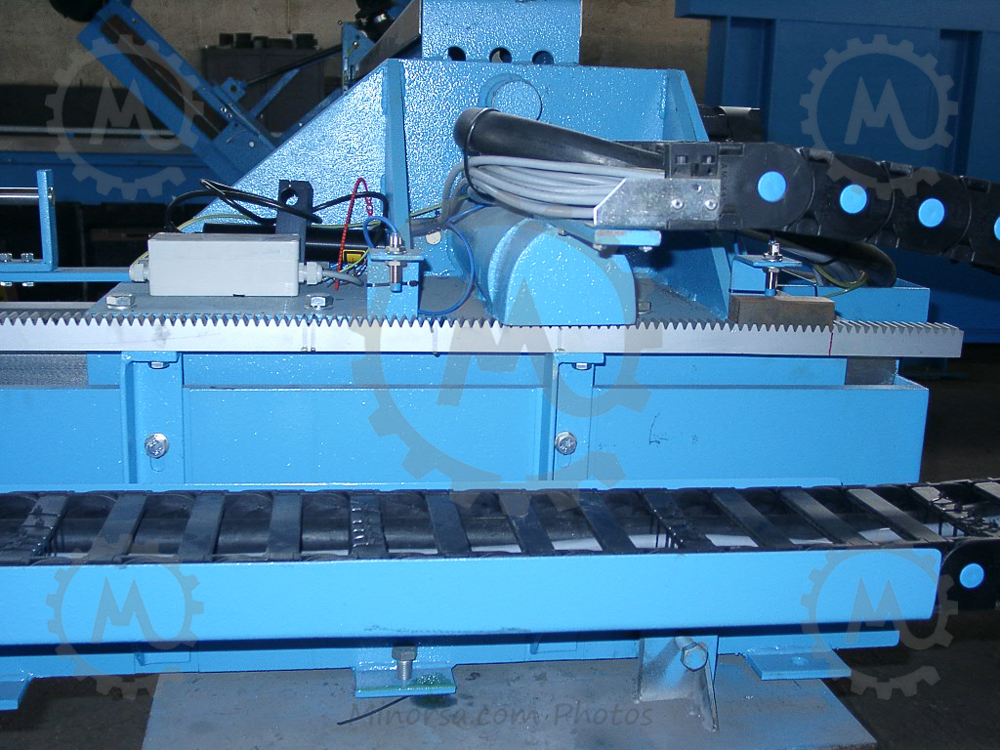

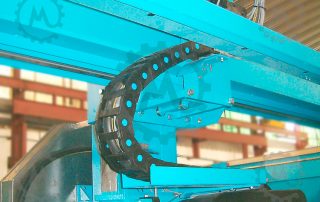

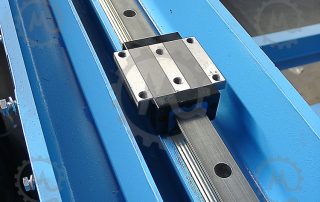

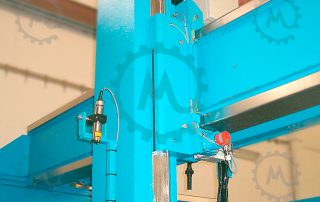

Its displacement system allows fast and precise moves.
Technical Features
AUTOMATIC REVOLVING TABLE
CUTS WITH THE SPINS SPINS, DISPLAY USER-FRIENDLY OPERATOR
✓ Diameter of disc permissible – 450mm a 900mm (1100mm)
✓ Maximum cutting height – 310mm (Falange support 280mm) 418mm=1100
✓ Maximum vertical displacement – Z= 710mm (or 1170mm)
✓ Cutting capacity – X= 3600mm; Y= 3300mm (Y= 3600 whit 1,1 mt)

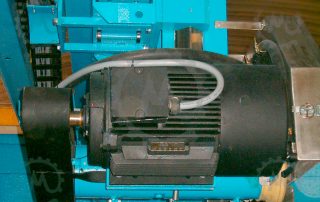

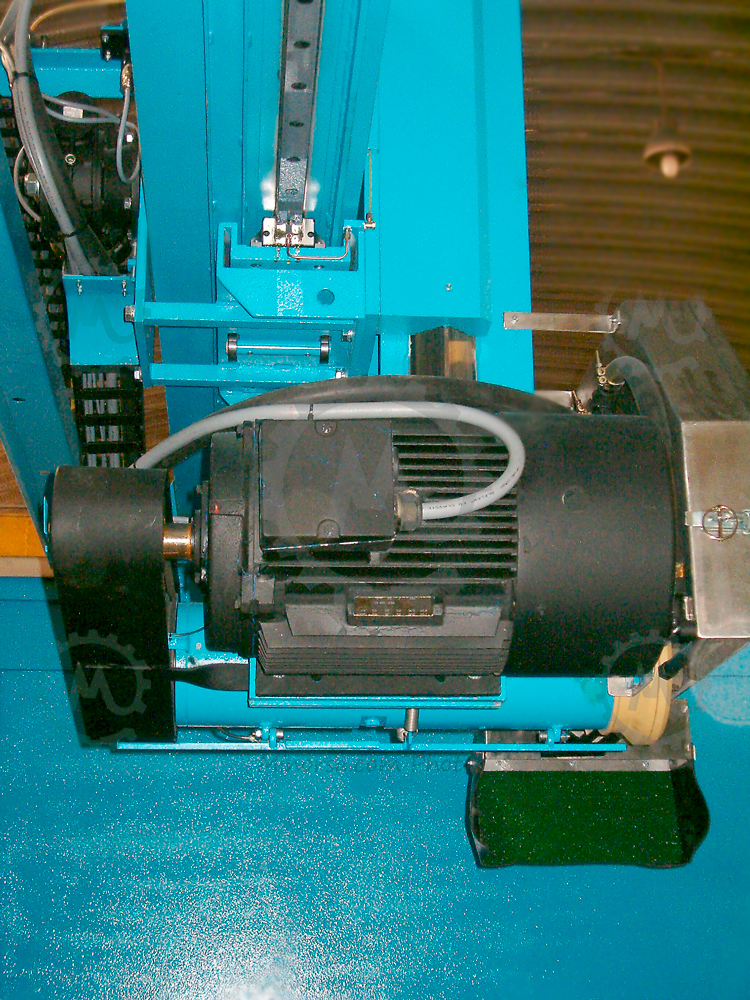

✓ Power admitted cutting motor – 15kw(20hp) / 22kw(30hp) / 30kw(40hp)
✓ Approximate minimum weight – 5500kg or 6800kg
✓ Maximum height required for operation – 3,9mt or 4,3mt
✓ Inside distance between headwaters (p/+ optional) – 5mt
✓ Maximum cutting speed shift – 20 or 37 mt/min
✓ Minimum peripheral speed for cutting – 28 or 45 mt/sec
Main Feature & Related Equipment

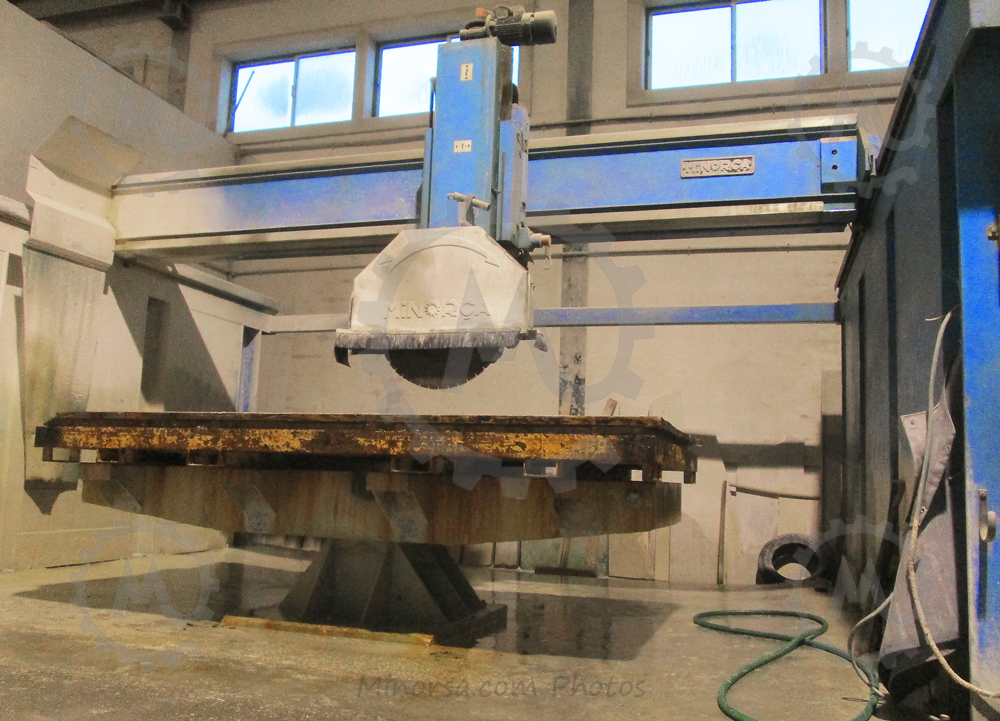

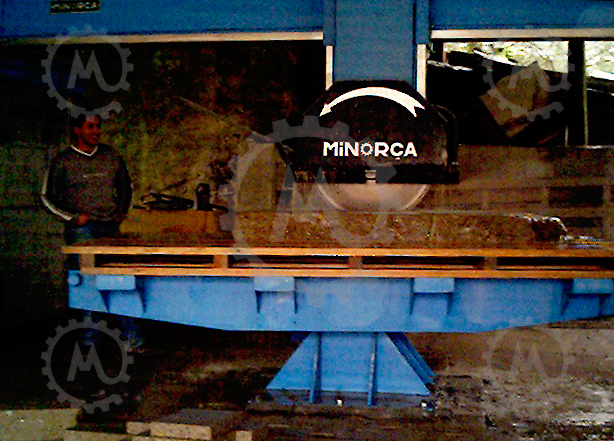

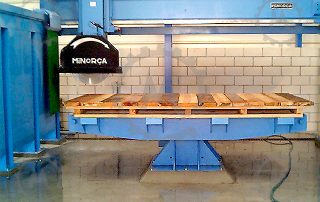

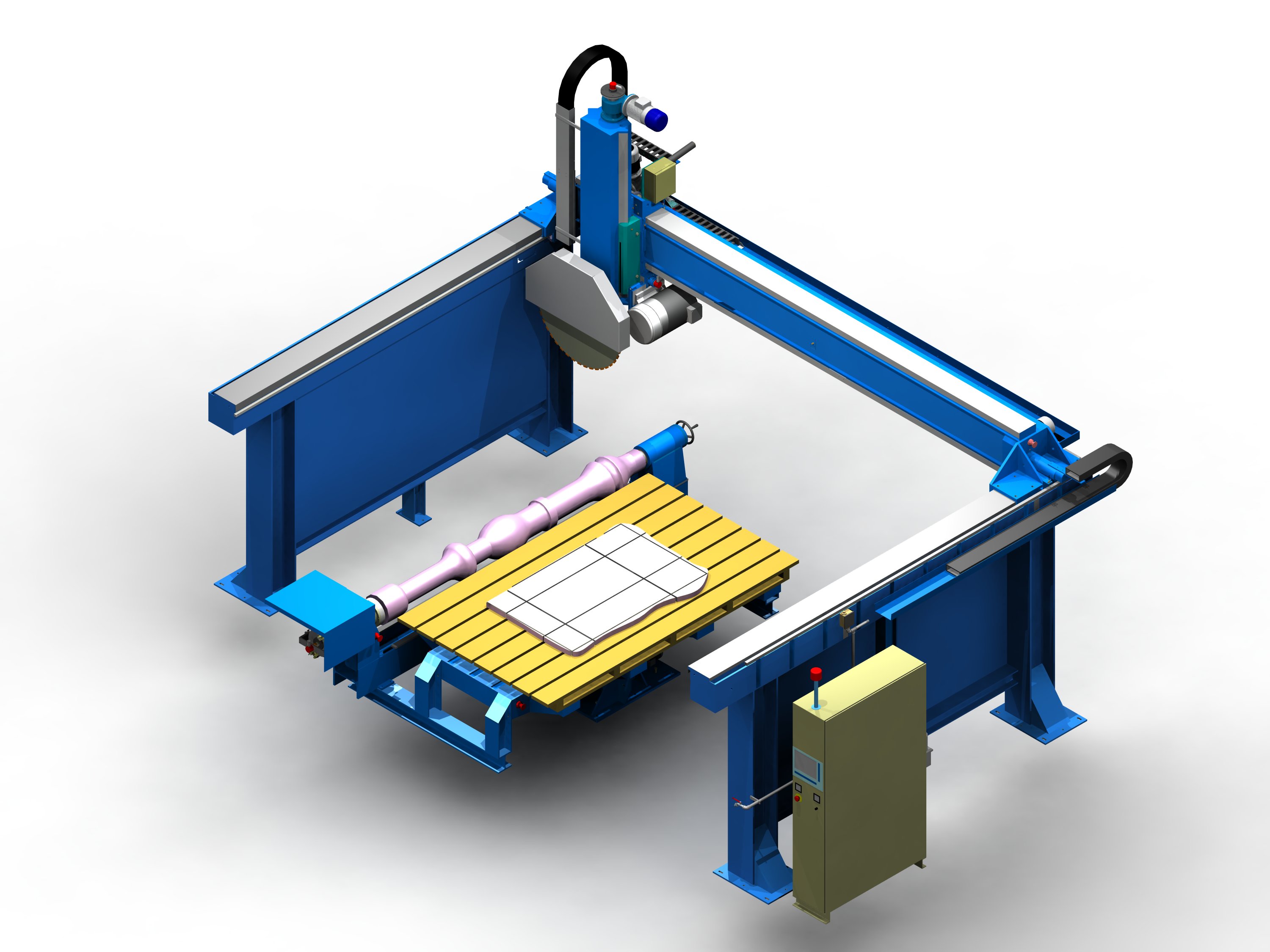

Rotary Bench

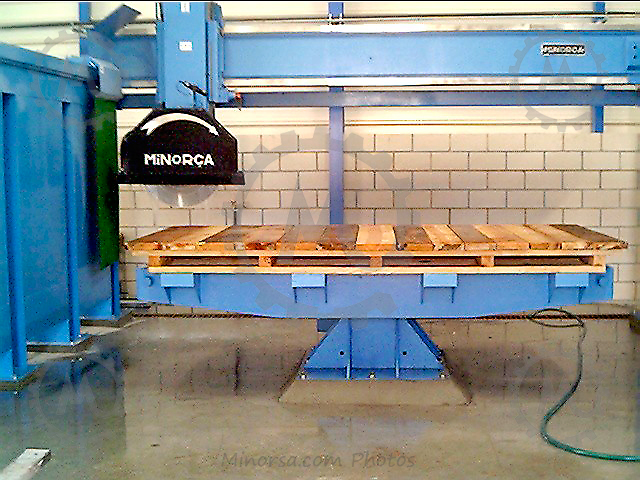

In automatic rotation allows every degree stop or continuous movement to profil, supports above 12tons; possibility to assemble manual indexation every 45 degree, in that mode will support above 6 tons.
Can also be adapted to other machines & if you intent please see any follow machine
Particular Cad Draw Programing
With the internal use of cad system the machines can cut surfaces without outsides recurses
Can also be adapted to other machines & if you intent please see any follow machine

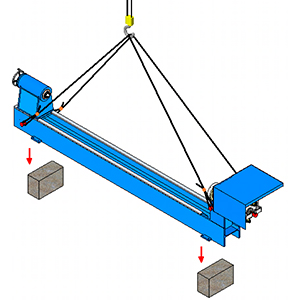

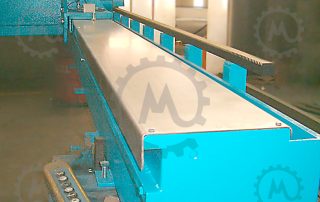

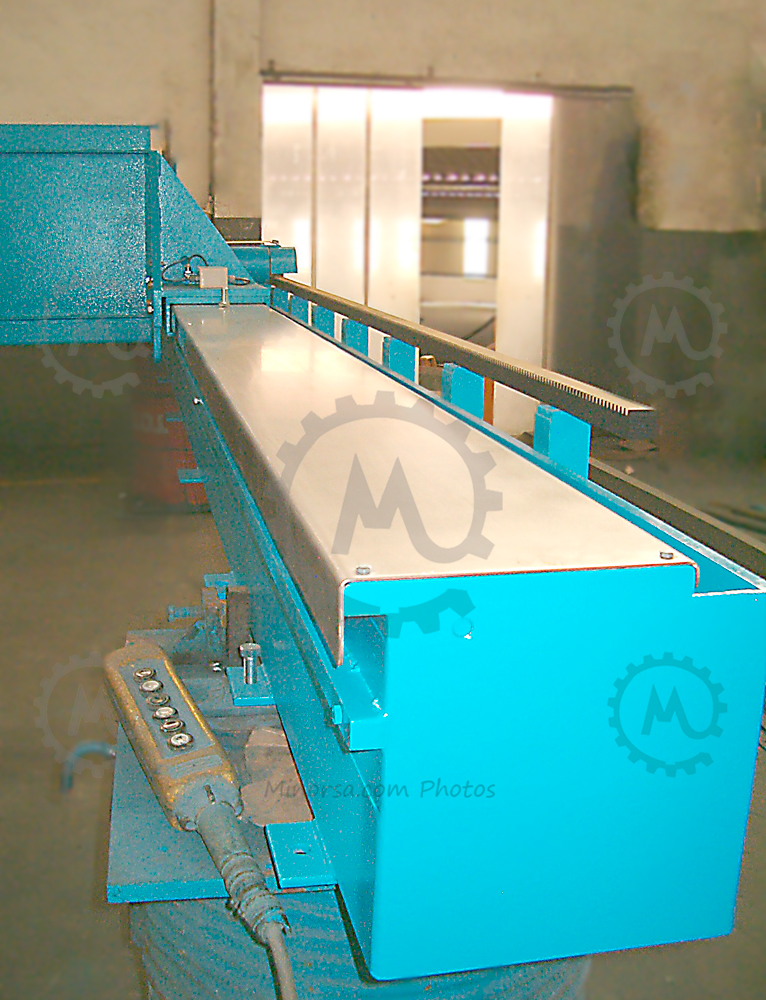

Several Length on Bridge
We have available an selection of bridge length and also head length, gives the possibility to increase the diameter and also the cutting travel.
Can also be adapted to other machines & if you intent please see any follow machine
Horizontal Tilt
Horizontal cut position, allow automatic cycles and several disk diameter, with an rotating bench can make an fountain.
Can also be adapted to other machines & if you intent please see any follow machine

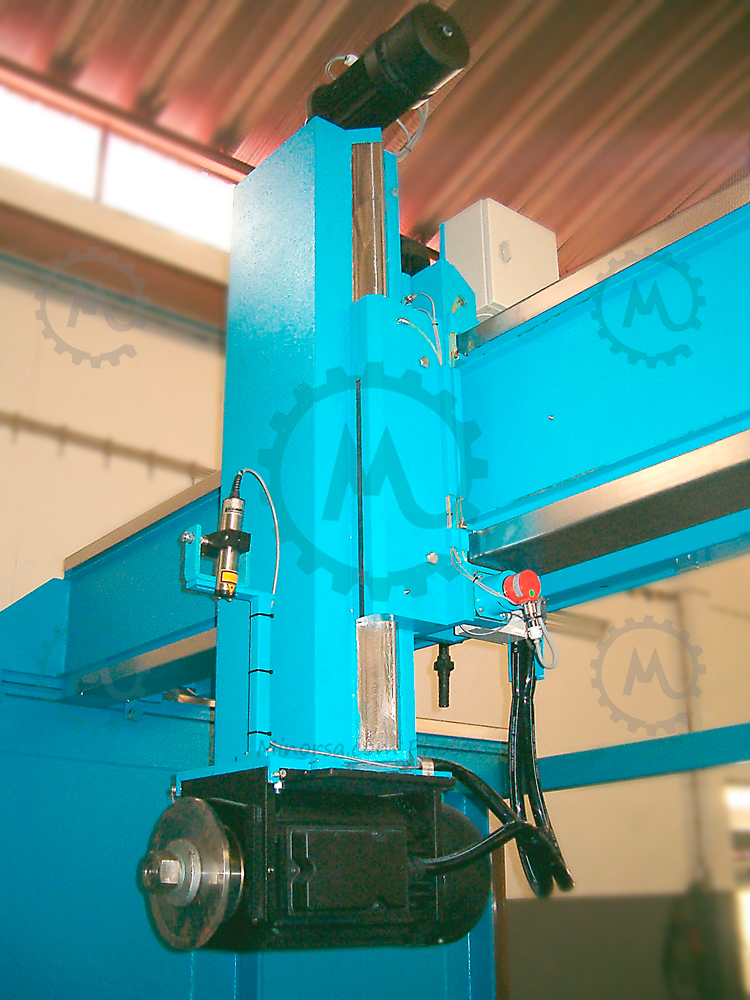

Double Cutting Individual Head
Can also be adapted to other machines & if you intent please see any follow machine

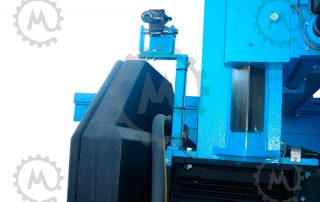

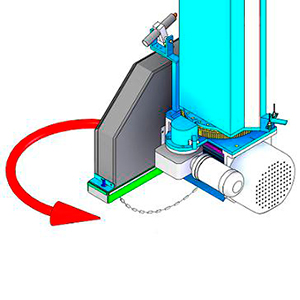

Rotating Cutting Saw
Can also be adapted to other machines & if you intent please see any follow machine
Monobloc Frame
Can also be adapted to other machines & if you intent please see any follow machine

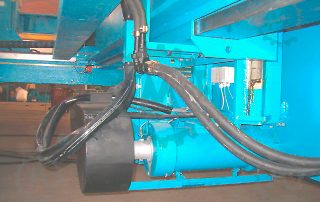

Increase Potential
Can also be adapted to other machines & if you intent please see any follow machine

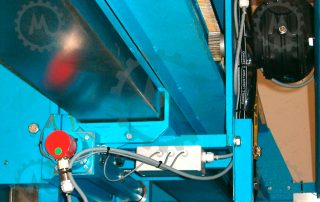

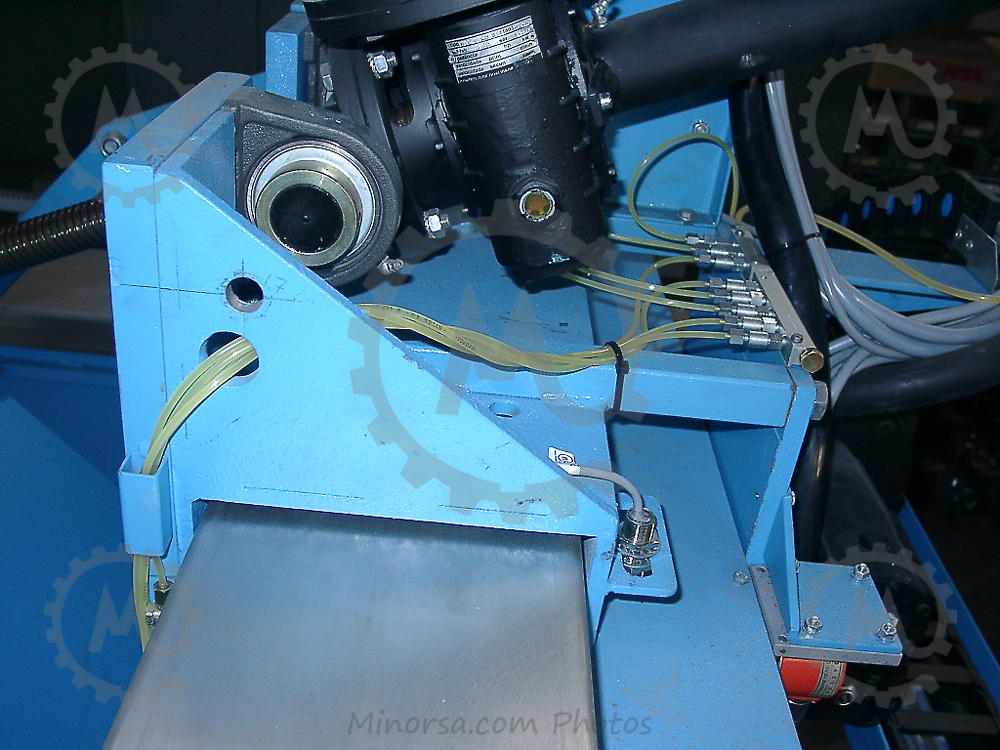

Common Parts
Can also be adapted to other machines & if you intent please see any follow machine

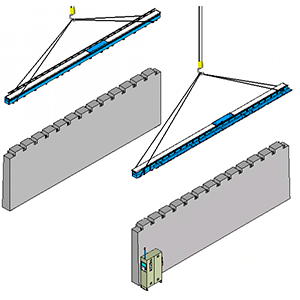

Concrete Pillars
We have available an selection of bridge length and also head length, gives the possibility to increase the diameter and also the cutting travel.
Can also be adapted to other machines & if you intent please see any follow machine

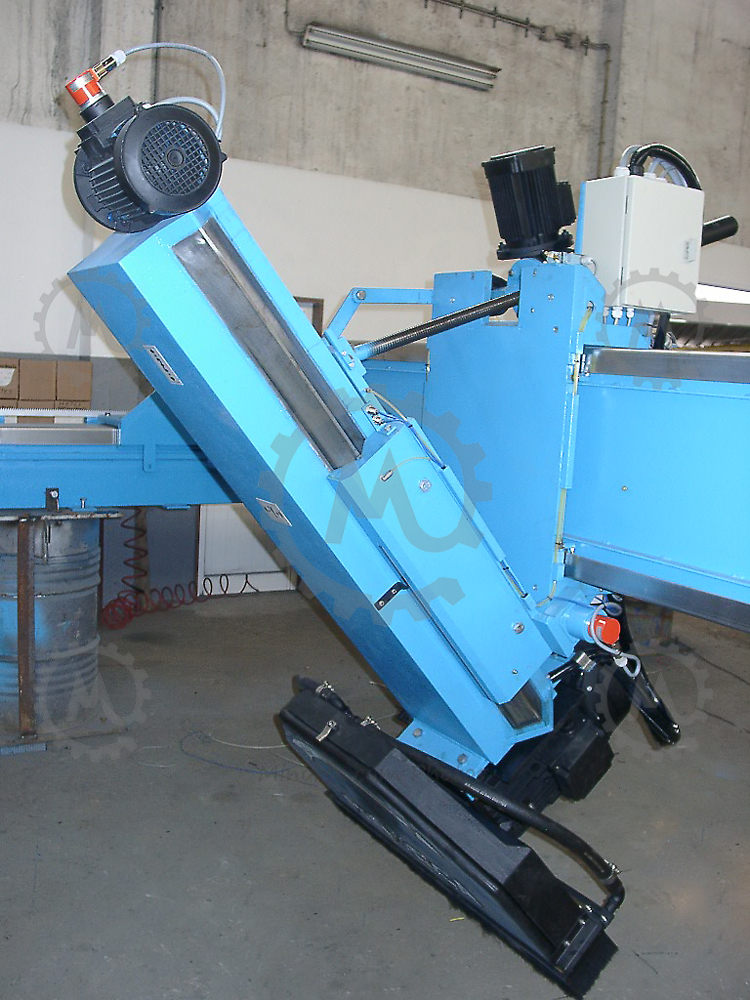

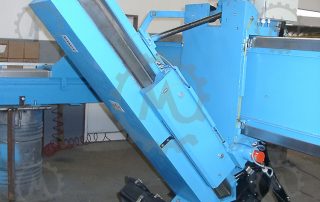

Inclination Head
Allows mitre joint cut since 1 until 45 degrees with several cutting cycles, no scar the stone
Can also be adapted to other machines & if you intent please see any follow machine
Lateral Pillars High Dimensioned
Can also be adapted to other machines & if you intent please see any follow machine

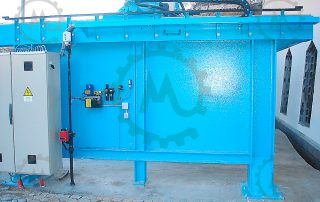

Metallic Pillars
Can also be adapted to other machines & if you intent please see any follow machine
Lathe Body to Bridge Saw
Can also be adapted to other machines & if you intent please see any follow machine
Tilt Bench
Can also be adapted to other machines & if you intent please see any follow machine
Multi Accessories to Cut Rentability
Can also be adapted to other machines & if you intent please see any follow machine

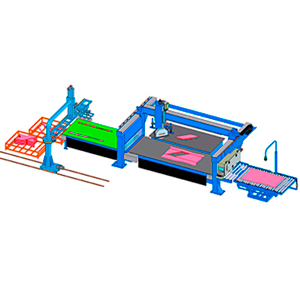

In and Out Belt Table
Can also be adapted to other machines & if you intent please see any follow machine
Belt Bench
Can also be adapted to other machines & if you intent please see any follow machine
Edge Polishing
Can also be adapted to other machines & if you intent please see any follow machine
Second Bench
Can also be adapted to other machines & if you intent please see any follow machine
Bench High Dimension, Can be Also in Square Shape
Can also be adapted to other machines & if you intent please see any follow machine
Horizontal Saw Body
Can also be adapted to other machines & if you intent please see any follow machine

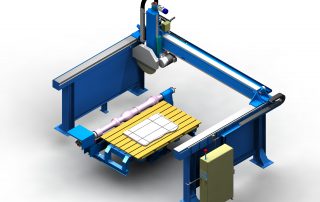

Lathe Body Assemble on Bench
Can also be adapted to other machines & if you intent please see any follow machine

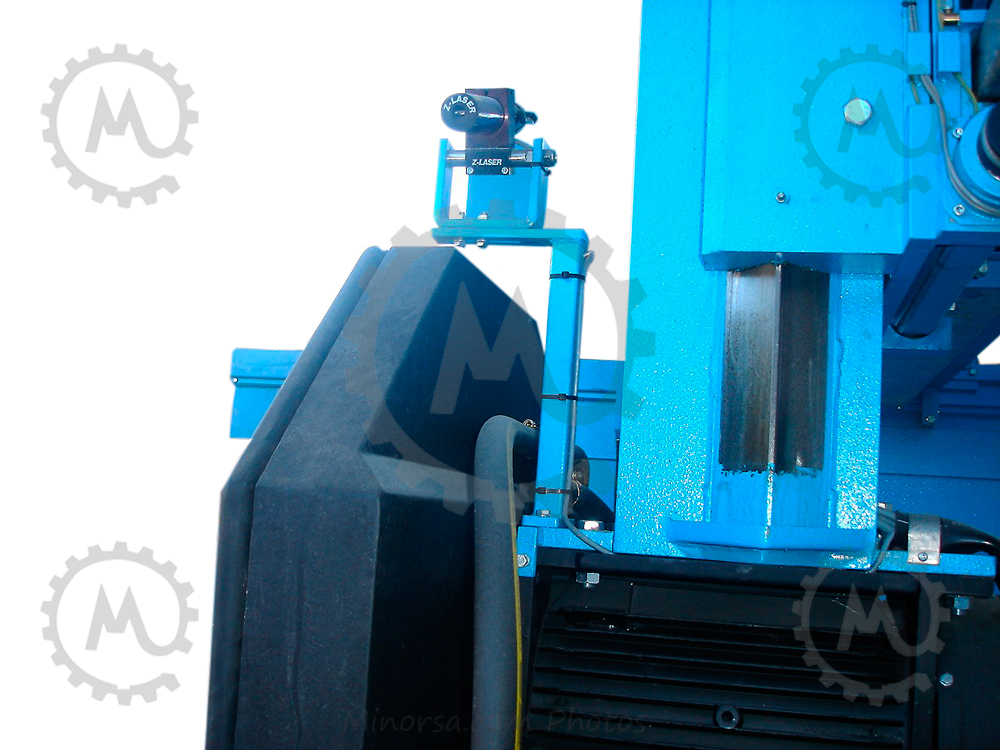

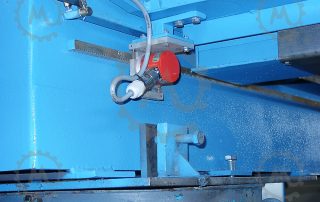

Laser Focus to Alignment
Can also be adapted to other machines & if you intent please see any follow machine
Pine Wood Table
Can also be adapted to other machines & if you intent please see any follow machine

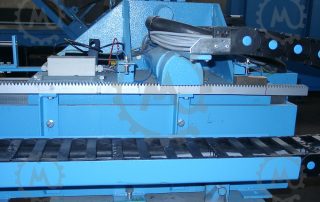

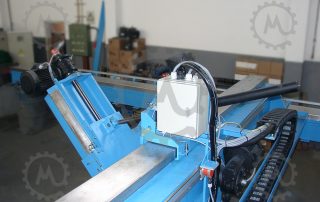

More Displacement on Lateral Pillars
Can also be adapted to other machines & if you intent please see any follow machine

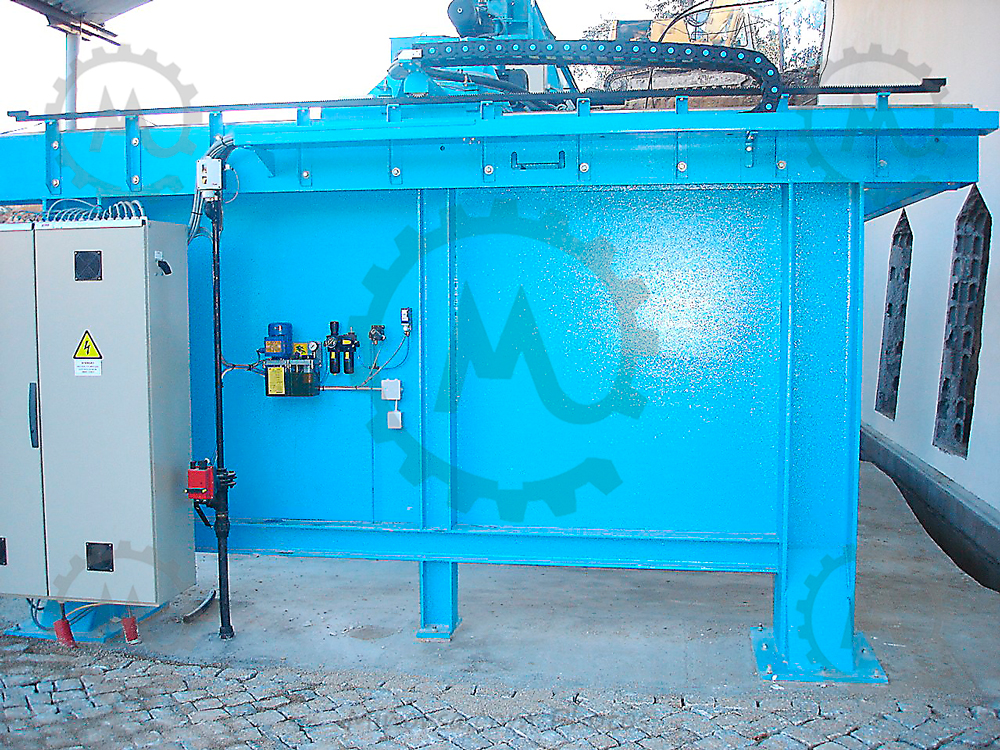

Water Treatment Installations
Can also be adapted to other machines & if you intent please see any follow machine

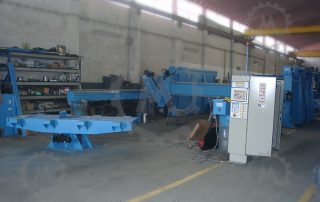

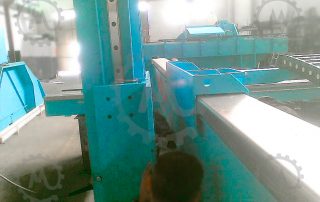

Gallery
Video
VIDEO

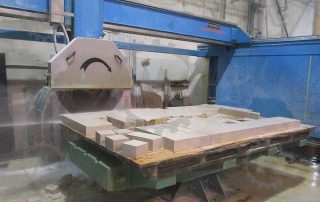

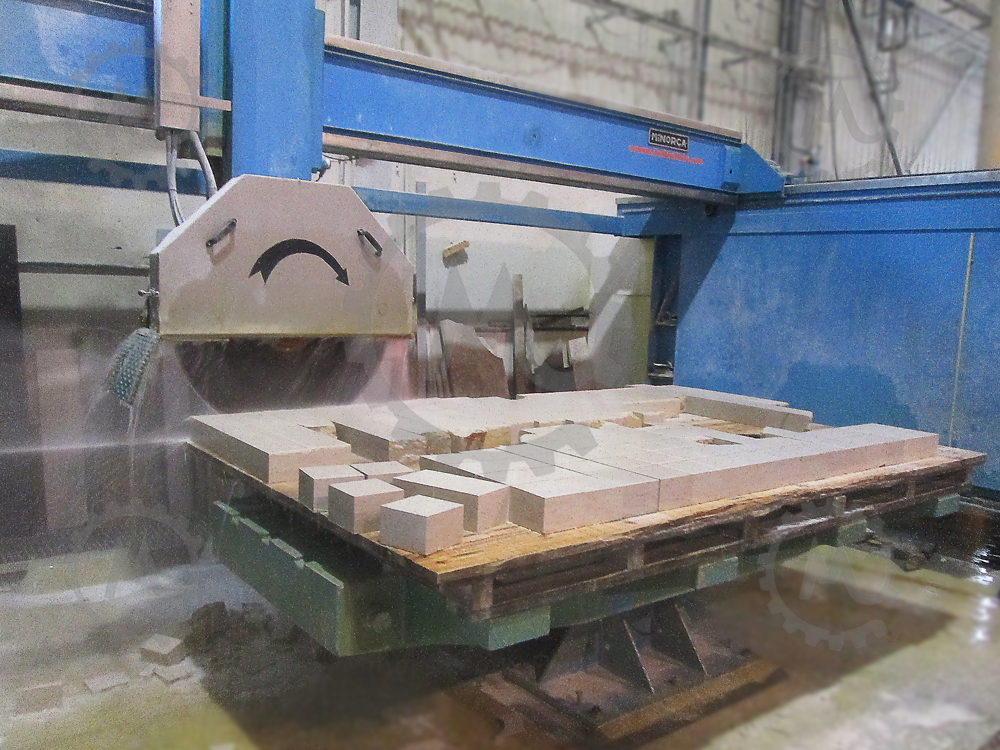

Works Machine
Multiple Axes Movement At Same Time
Can make profiles using several axes, depending of the control system it’s possible execute programs generated on cad cam system outside or in proper cad on control machine, the cutting parameters can be changed on machine, the final work quality it’s defined by quantity of cross cut
Saw Round Profile
By proper program can program the diameter, the rope quantity, the proper higher, the final work quality
Water Treatment System
Allows the factory work with clean water, works in closed circuit the mud can be separated with an small humidity, theres several models adopted to all sizes of factory’s

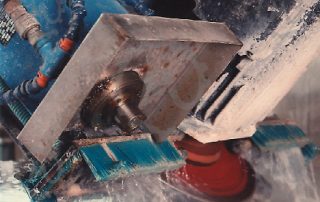

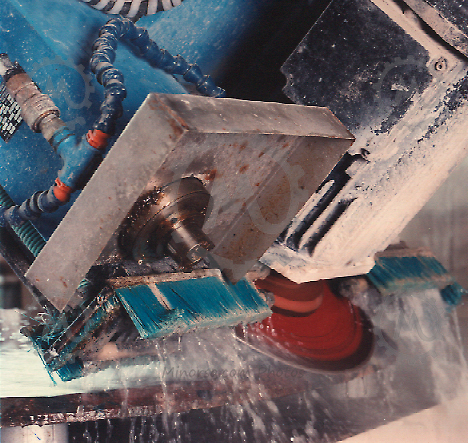

Final Polishing Work
After the cutting process it’s possible put the stone in an finishing machine witch can polishing the edges and put it in several shapes
Balustrade And Columns In Round Shape
Can do with proper cad program worked stones in several materials and also forms, like final quality, that one can be perfect, ready to polish
Execute 90 Degrees Cutting Angle
In automatic execution can program both cutting sides
Vertical Cutting For Slabs Production
Development of proper program to maximum rentability stone cutting
Surface Profiling
With one axe movement each time can produce forms by draw in a proper program on the machine
