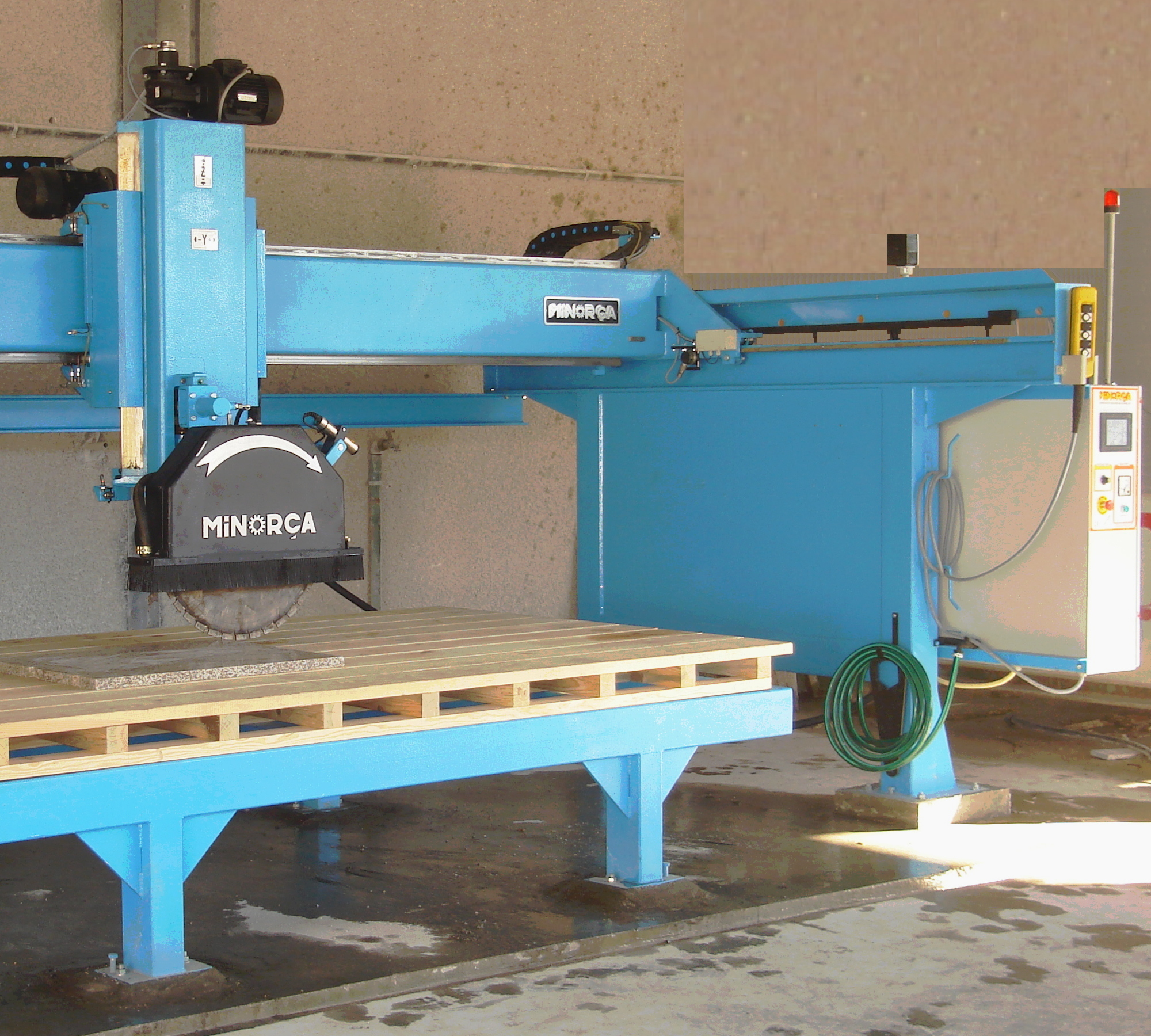

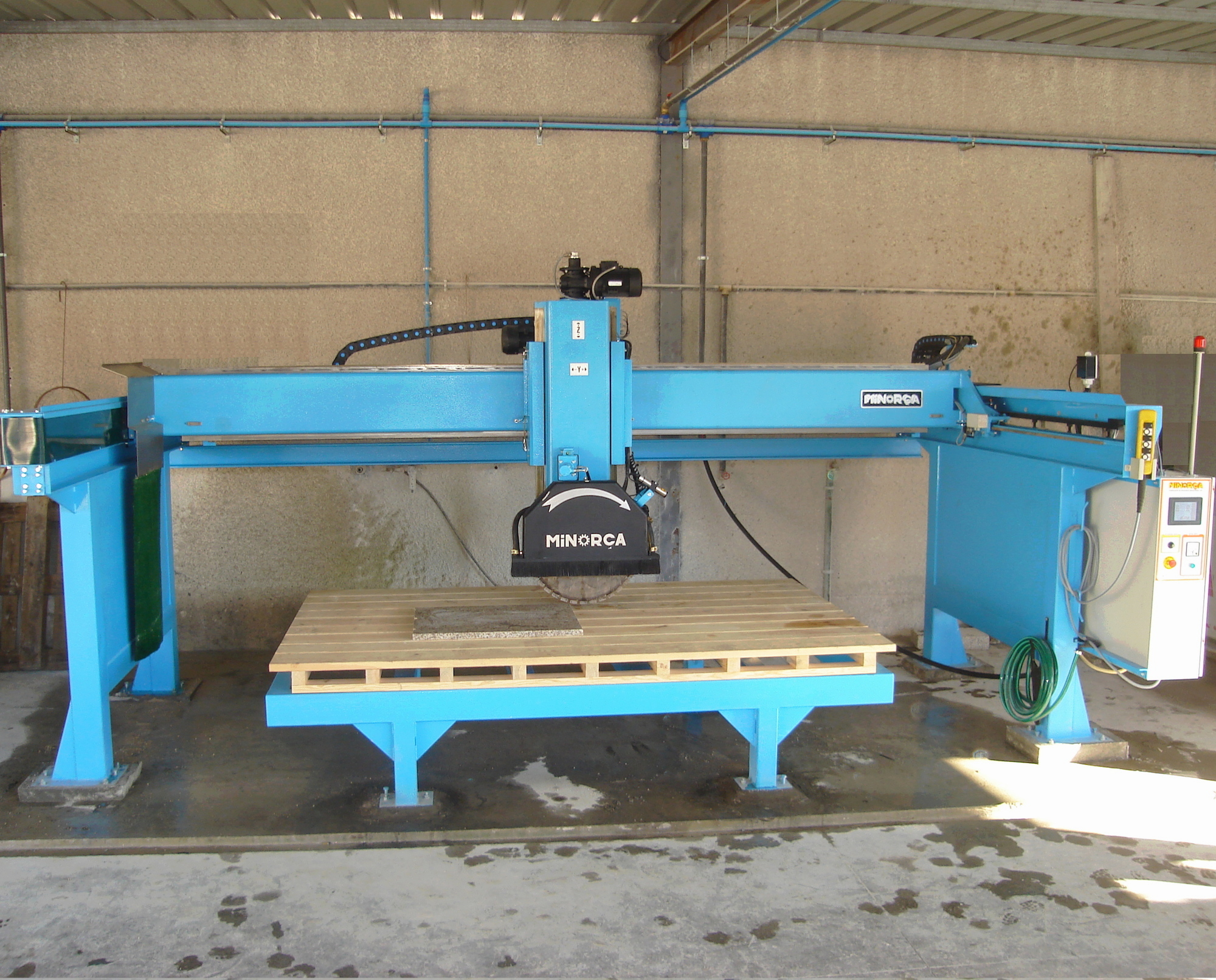

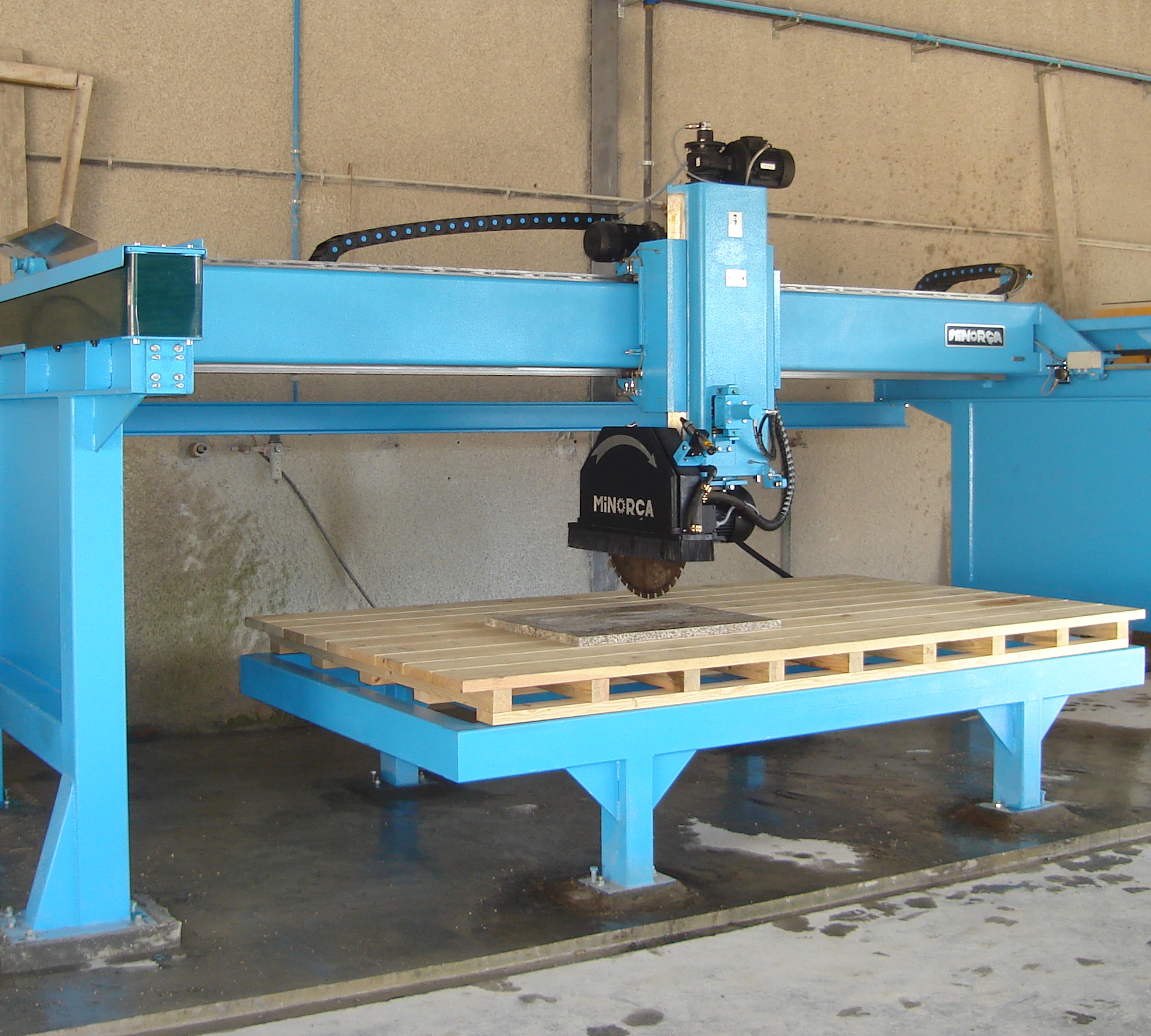

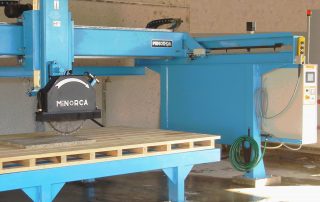

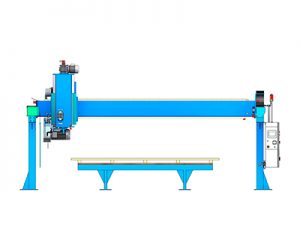

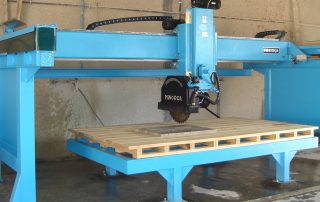

Slab By Slab Bridge Saw
About
Ideal to cut sheet metal, and it has a user-friendly automatic mode to set measurements.
Technical Features
SUITABLE FOR CUTTING THE SHEET PLATE WITH AUTOMATIC PROGRAM
✓ Diameter of disc permissible – 350mm a 600mm
✓ Maximum cutting height – 180mm (Falange support 240mm)
✓ Maximum vertical displacement with fixed speed- Z= 360mm
✓ Cutting capacity – X= 1800mm or more; Y= 3500mm
✓ Cut engine power variation with rotation – 11kw (15hp)
✓ Approximate minimum weight – 3000kg
✓ Maximum height required for operation – 2,9mt
✓ Inside distance between headwaters – 4,9mt
✓ Maximum cutting speed shift -16 mt/min
✓ Minimum peripheral speed for cutting – 24 mt/sec
Main Feature & Related Equipment
Rotary Bench
In automatic rotation allows every degree stop or continuous movement to profil, supports above 12tons; possibility to assemble manual indexation every 45 degree, in that mode will support above 6 tons.
Can also be adapted to other machines & if you intent please see any follow machine
Particular Cad Draw Programing
With the internal use of cad system the machines can cut surfaces without outsides recurses
Can also be adapted to other machines & if you intent please see any follow machine

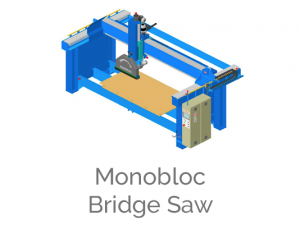

Monobloc Frame
Can also be adapted to other machines & if you intent please see any follow machine
Common Parts
Can also be adapted to other machines & if you intent please see any follow machine

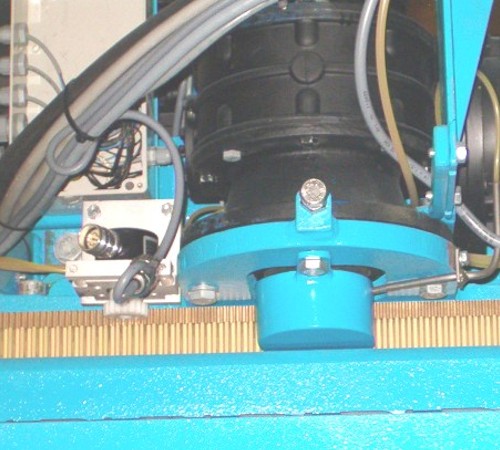

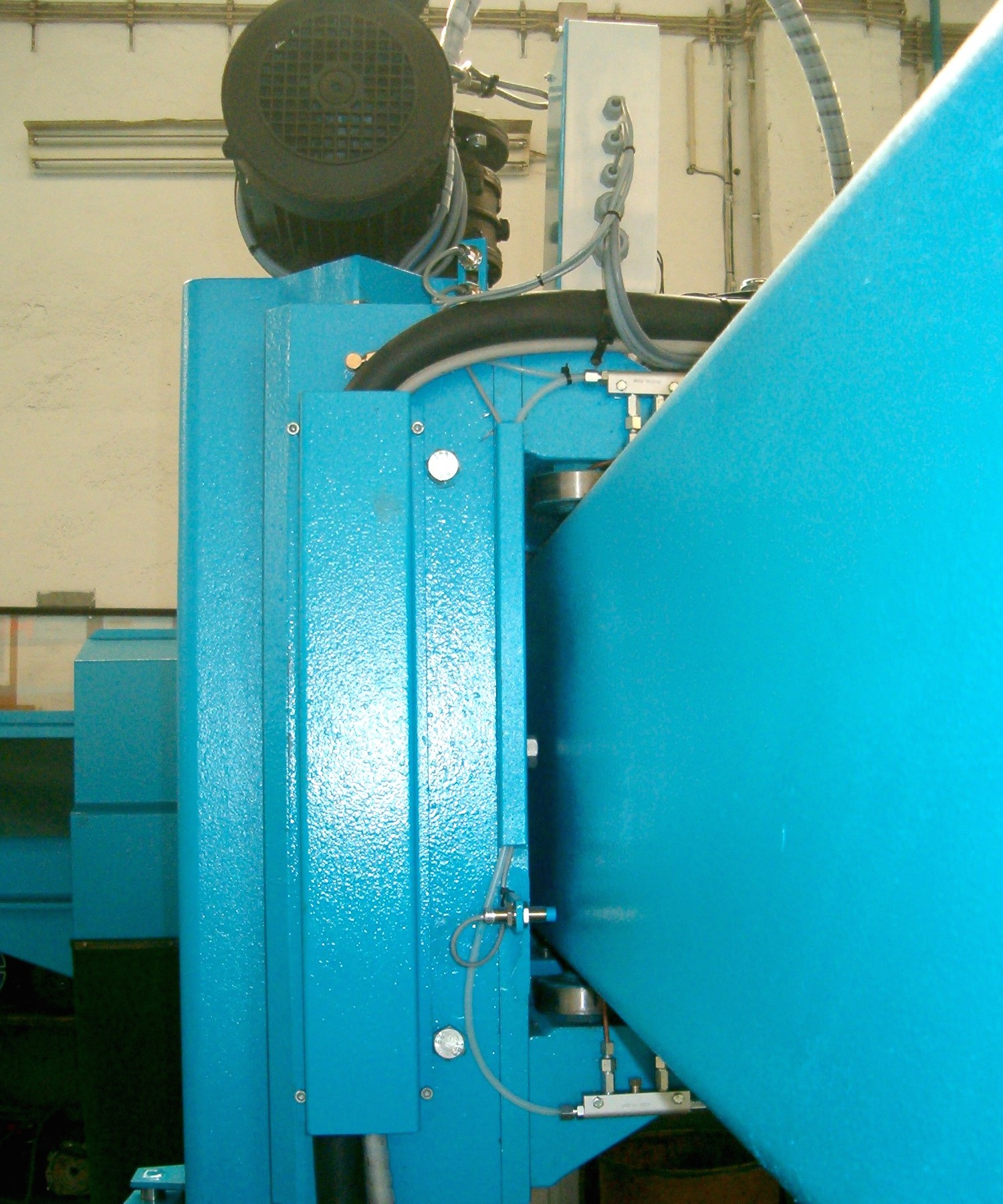

Inclination Head
Allows mitre joint cut since 1 until 45 degrees with several cutting cycles, no scar the stone
Can also be adapted to other machines & if you intent please see any follow machine

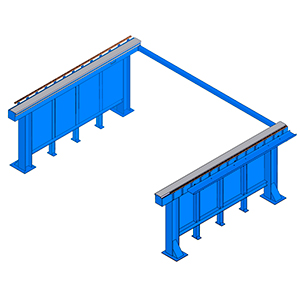

Metallic Pillars
Can also be adapted to other machines & if you intent please see any follow machine

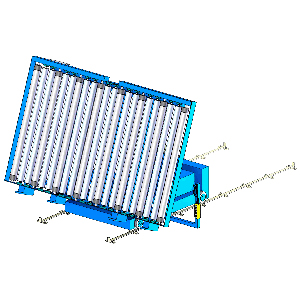

Tilt Bench
Can also be adapted to other machines & if you intent please see any follow machine

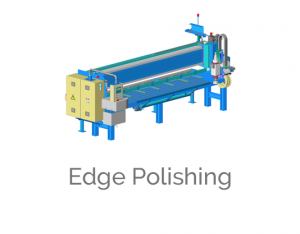

Edge Polishing
Can also be adapted to other machines & if you intent please see any follow machine

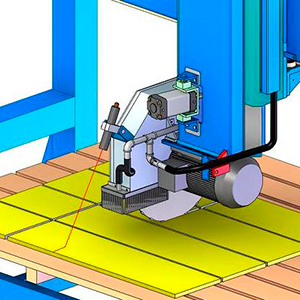

Laser Focus to Alignment
Can also be adapted to other machines & if you intent please see any follow machine

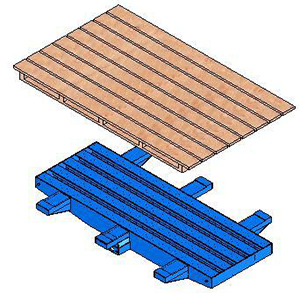

Pine Wood Table
Can also be adapted to other machines & if you intent please see any follow machine
Water Treatment Installations
Can also be adapted to other machines & if you intent please see any follow machine
Gallery

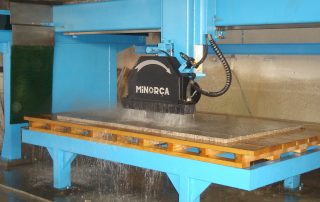

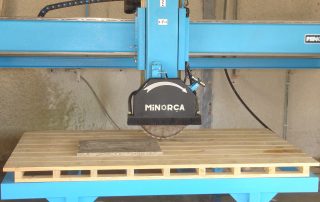

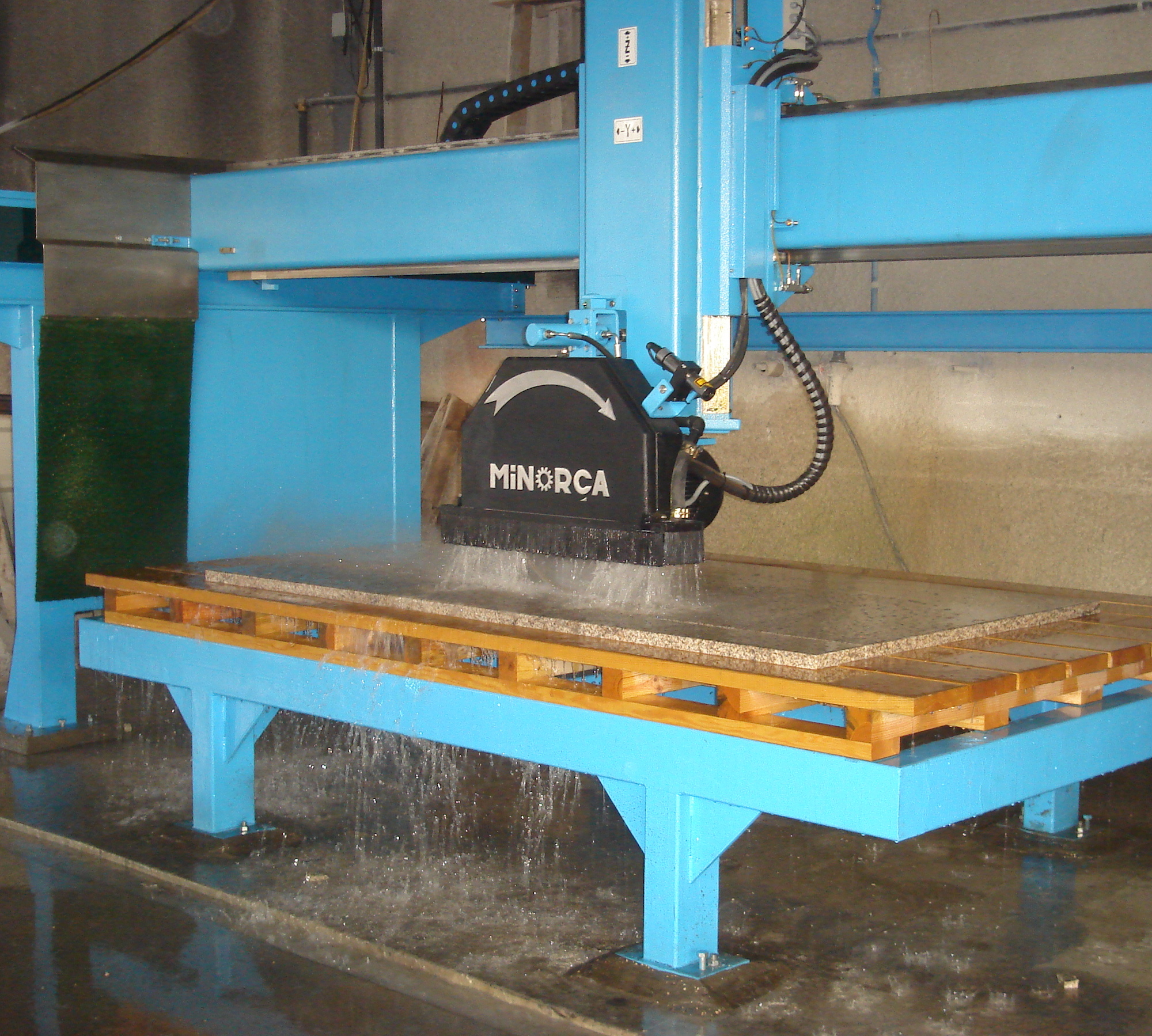

Works Machine

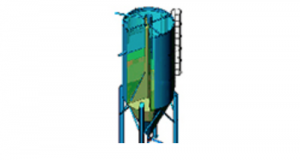

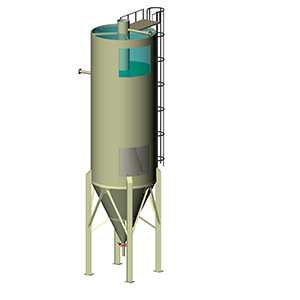

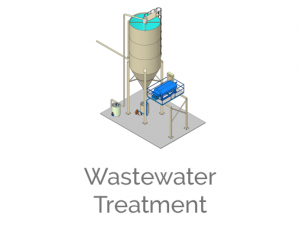

Water Treatment System
Allows the factory work with clean water, works in closed circuit the mud can be separated with an small humidity, theres several models adopted to all sizes of factory’s

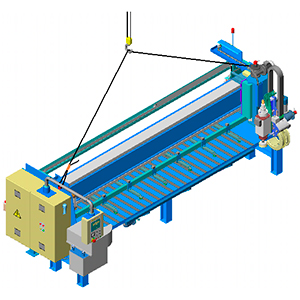

Vertical Cutting For Slabs Production
Development of proper program to maximum rentability stone cutting
