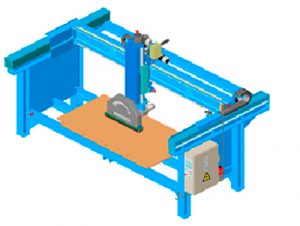

Monobloc For High Thickness
About
It has a compact structure that does not require much space to operate and has a low assembly cost.
Very good prestation on soft stones as sandstone , limestone , marbles where with the 30 hp motor can cut more than 200 mm in one time.
The swivel head models take up less space.
Technical Features
DEVELOPED FOR CUTTING MULTIPLE SHEETS SIMULTANEOUS IN ONE STEP
✓ Diameter of disc permissible – 450 millimeters (mm) to 725 mm
✓ Maximum cutting height – 220 mm (Falange support 280 mm)
✓ Maximum vertical displacement – Z axis = 470 mm (for + optional)
✓ Cutting capacity – X axis = 1,700 mm ; Y axis = 3,400 mm (for + optional)
✓ Maximum power cut engine – 15kw (20hp) / 22kw (30hp)
✓ Approximate minimum weight – 4,000 kilos (kg)
✓ Maximum height required for operation – 3,4 meters (mt)
✓ Inside distance between headwaters – 4,9 mt (for + optional)
✓ MAXimum cutting speed shift – 16 meters /minute
✓ MINimum peripheral speed for cutting – 26 or 42 meters / second
Main Feature & Related Equipment
Rotary Bench
In automatic rotation allows every degree stop or continuous movement to profil, supports above 12tons; possibility to assemble manual indexation every 45 degree, in that mode will support above 6 tons.
Can also be adapted to other machines & if you intent please see any follow machine
Particular Cad Draw Programing
With the internal use of cad system the machines can cut surfaces without outsides recurses
Can also be adapted to other machines & if you intent please see any follow machine
Rotating Cutting Saw
Can also be adapted to other machines & if you intent please see any follow machine

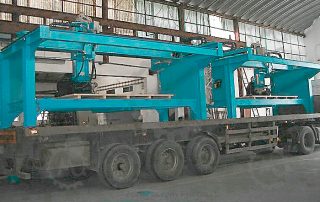

Monobloc Frame Transportation
Can also be adapted to other machines & if you intent please see any follow machine
Common Parts
Can also be adapted to other machines & if you intent please see any follow machine
Inclination Head
Allows mitre joint cut since 1 until 45 degrees with several cutting cycles, no scar the stone
Can also be adapted to other machines & if you intent please see any follow machine
Metallic Pillars
Can also be adapted to other machines & if you intent please see any follow machine
Edge Polishing
Can also be adapted to other machines & if you intent please see any follow machine
Laser Focus to Alignment
Can also be adapted to other machines & if you intent please see any follow machine
Pine Wood Table
Can also be adapted to other machines & if you intent please see any follow machine
Water Treatment Installations
Can also be adapted to other machines & if you intent please see any follow machine

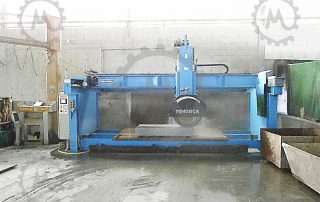

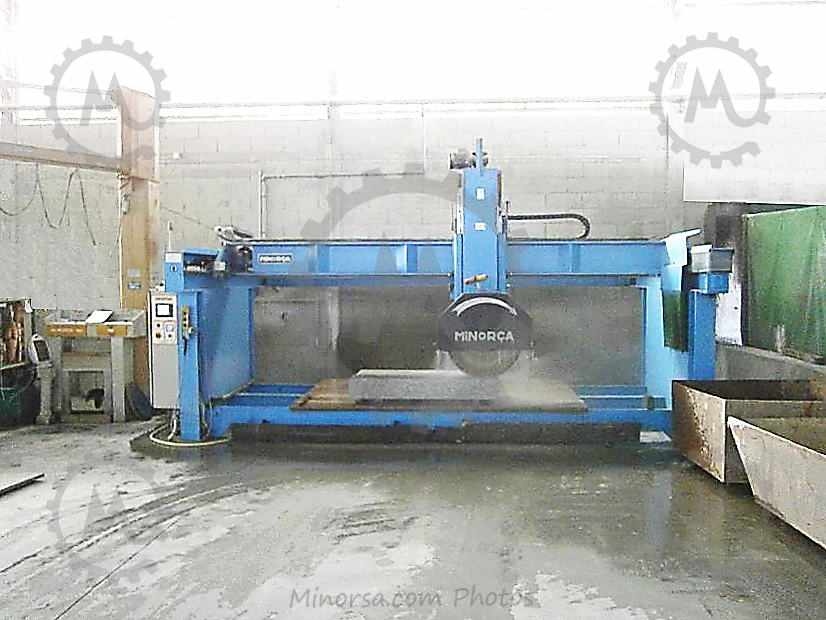

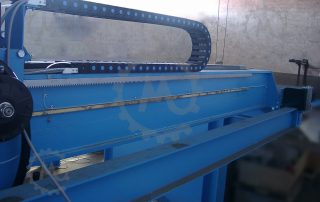

Gallery
Video
Video
Works Machine
Water Treatment System
Allows the factory work with clean water, works in closed circuit the mud can be separated with an small humidity, theres several models adopted to all sizes of factory’s
Vertical Cutting For Slabs Production
Development of proper program to maximum rentability stone cutting
