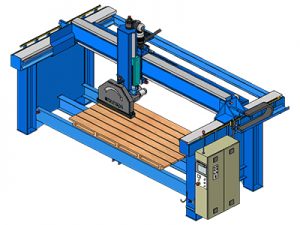

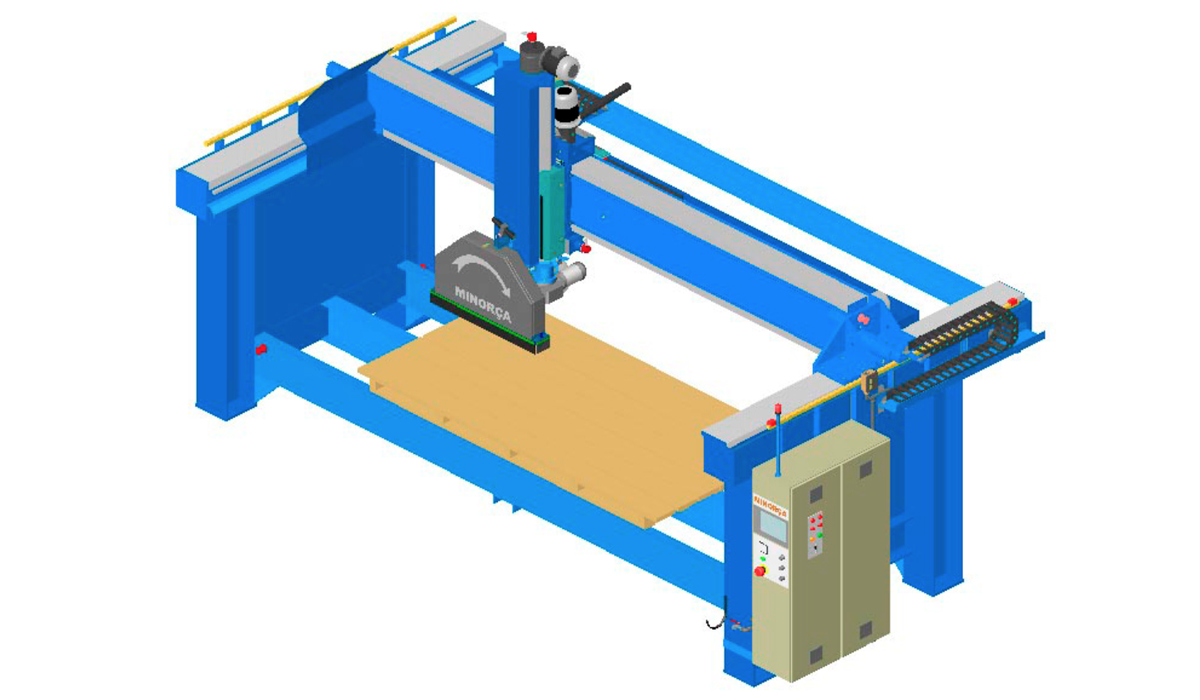

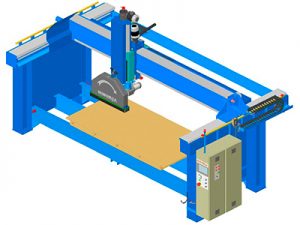

Monobloc Bridge Saw
About
Compact structure, very fast, several programming menus to maximize the cutting process, with a precise and solid cut due to the use of the latest technology.
Technical Features
FAST AND INTUITIVE PROGRAMMING
✓ Diameter of the disc permissible – 450mm to 725mm (825mm)
✓ Maximum cutting height – 220mm (Falange 280mm)
✓ Vertical displacement minimum – Z= 470mm (p/+ optional)
✓ Cutting capacity – X= 1700mm; Y= 3400mm (p/+ optional)
✓ Power of main motor – 15kw (20hp) / 22Kw (30Hp)
✓ Approximate minimum weight – 6000Kg
✓ Maximum height required for operation – 3.6mt
✓ Distance between inner headboards (p/+ optional)- 5mt
✓ Cutting displacement velocity’s – 20 or 37 mt/min.
✓ minimum peripheral speed for cutting – 28 or 35mt/sec
Main Feature & Related Equipment
Rotary Bench
In automatic rotation allows every degree stop or continuous movement to profil, supports above 12tons; possibility to assemble manual indexation every 45 degree, in that mode will support above 6 tons.
Can also be adapted to other machines & if you intent please see any follow machine
Particular Cad Draw Programing
With the internal use of cad system the machines can cut surfaces without outsides recurses
Can also be adapted to other machines & if you intent please see any follow machine
Several Length on Bridge
We have available an selection of bridge length and also head length, gives the possibility to increase the diameter and also the cutting travel.
Can also be adapted to other machines & if you intent please see any follow machine
Rotating Cutting Saw
Can also be adapted to other machines & if you intent please see any follow machine
Monobloc Frame Transportation
Can also be adapted to other machines & if you intent please see any follow machine
Common Parts
Can also be adapted to other machines & if you intent please see any follow machine
Inclination Head
Allows mitre joint cut since 1 until 45 degrees with several cutting cycles, no scar the stone
Can also be adapted to other machines & if you intent please see any follow machine
Lateral Pillars High Dimensioned
Can also be adapted to other machines & if you intent please see any follow machine
Metallic Pillars
Can also be adapted to other machines & if you intent please see any follow machine
Lathe Body to Bridge Saw
Can also be adapted to other machines & if you intent please see any follow machine
Tilt Bench
Can also be adapted to other machines & if you intent please see any follow machine
Multi Accessories to Cut Rentability
Can also be adapted to other machines & if you intent please see any follow machine
Laser Focus to Alignment
Can also be adapted to other machines & if you intent please see any follow machine
Pine Wood Table
Can also be adapted to other machines & if you intent please see any follow machine
More Displacement on Lateral Pillars
Can also be adapted to other machines & if you intent please see any follow machine
Water Treatment Installations
Can also be adapted to other machines & if you intent please see any follow machine
Gallery
Works Machine
Water Treatment System
Allows the factory work with clean water, works in closed circuit the mud can be separated with an small humidity, theres several models adopted to all sizes of factory’s
Balustrade And Columns In Round Shape
Can do with proper cad program worked stones in several materials and also forms, like final quality, that one can be perfect, ready to polish
Execute 90 Degrees Cutting Angle
In automatic execution can program both cutting sides
Vertical Cutting For Slabs Production
Development of proper program to maximum rentability stone cutting
Tilting Saw For Angles Cutting
Theres two systems for angle cutting, the tilt head it’s the most cheaper, rentable and gives perfect finishing, the dual movement of axes can do the process also with de saw inclination axe
