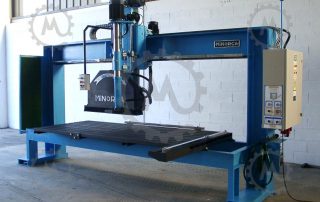

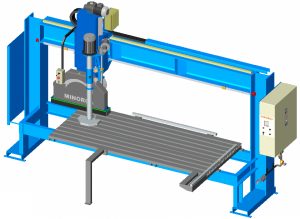

Fixed Bridge Cut By Cut
About
For sawing without any measures and to carry out specific tasks. Use of a worktable according to the work needed, automatic in the single cut cycle.
Technical Features
✓ Diameter of the disc permissible – 450 mm to 1,000 mm
✓ Maximum cutting height – 375 mm (Falange 250 mm)
✓ Vertical displacement minimum – Z= 470mm (for more optional)
✓ Cutting capacity – X= 3,500mm on 600mm diameter (for more optional)
✓ Power of main motor – 15kw (20hp) / 30Amp. ; 22Kw (30Hp)
✓ Approximate minimum weight – 1,800Kg
✓ Maximum height required for operation – 2,6 meters x 5,5 meters
✓ Cutting displacement velocity’s – 16 mt/min.
✓ Maximum speed delocamento cut –
✓ minimum peripheral speed for cutting – 28 or 35mt/sec (can set up with inverter)
Main Feature & Related Equipment

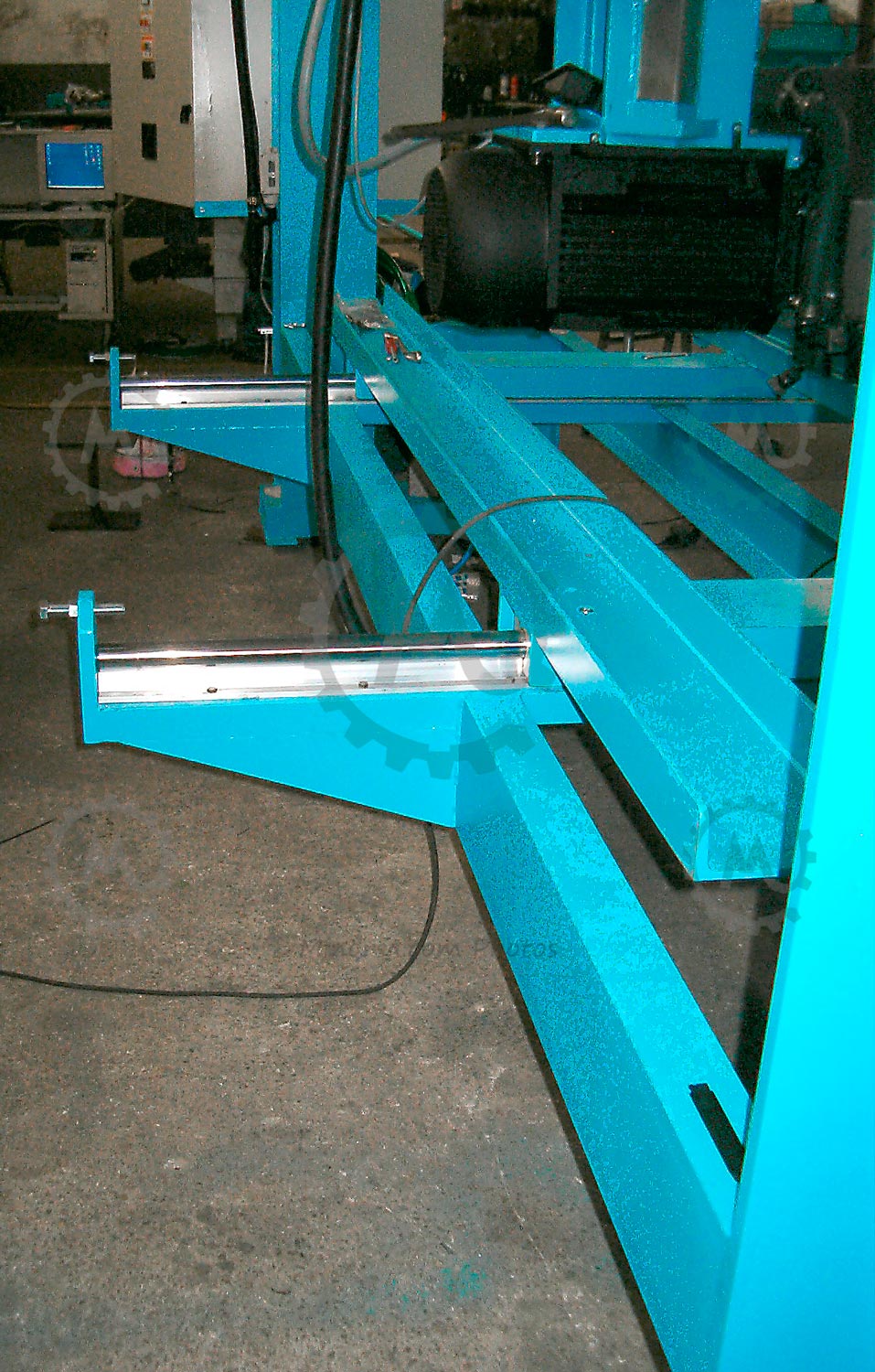

Monobloc Frame Transportation
Can also be adapted to other machines & if you intent please see any follow machine
Common Parts
Can also be adapted to other machines & if you intent please see any follow machine

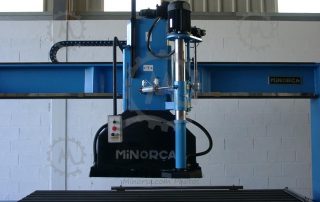

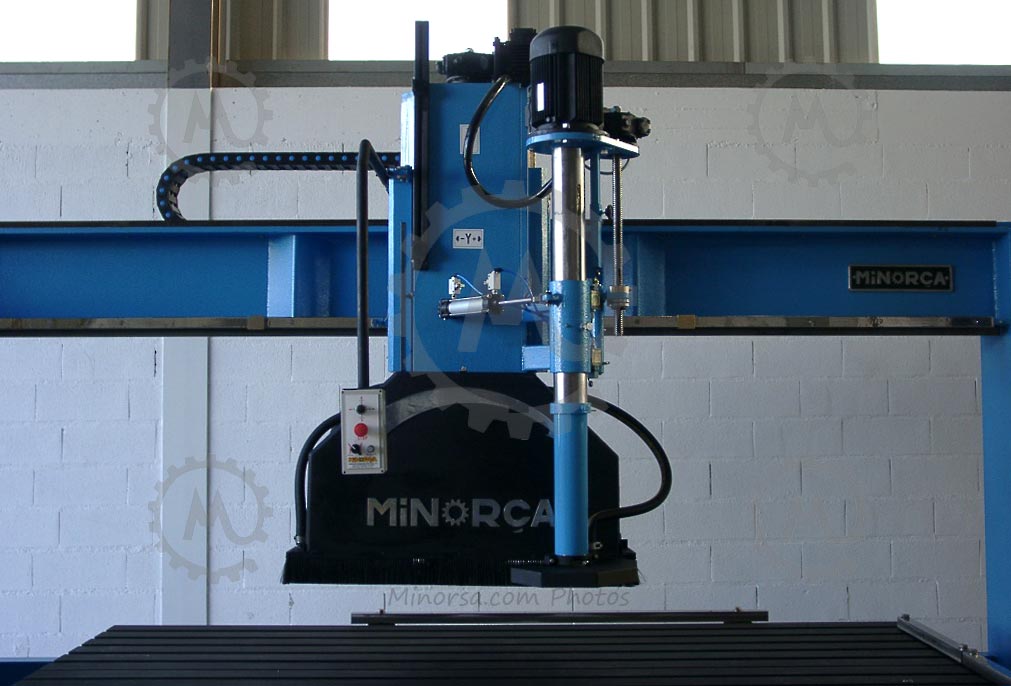

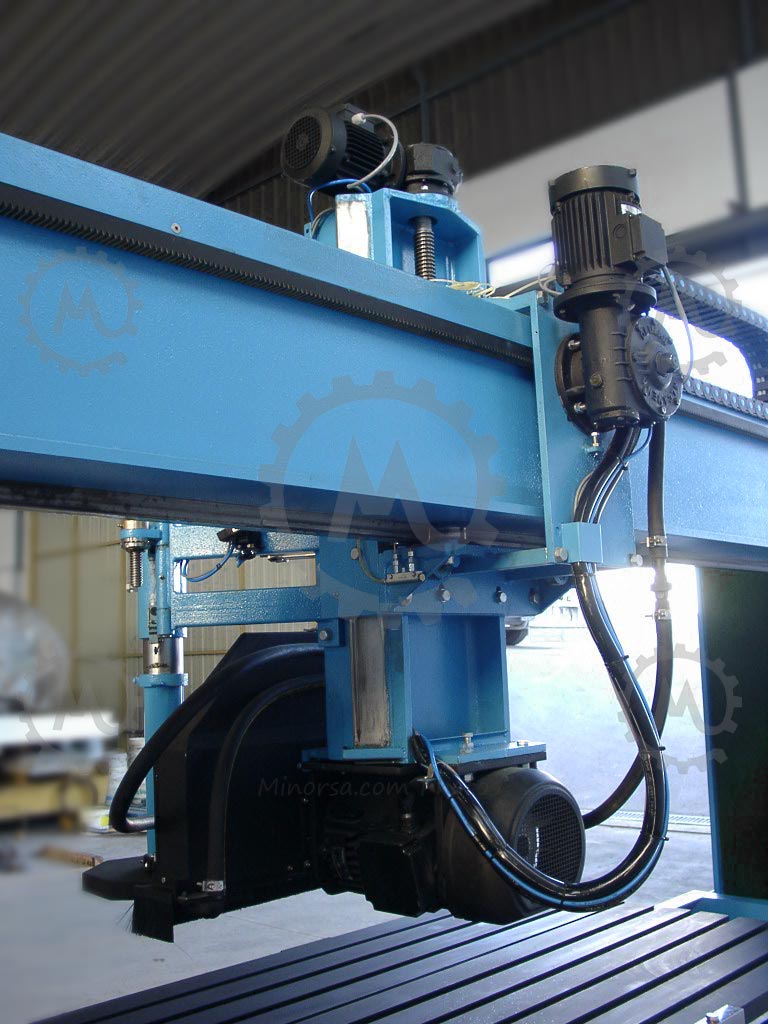

Horizontal Saw Body
Can also be adapted to other machines & if you intent please see any follow machine
Laser Focus to Alignment
Can also be adapted to other machines & if you intent please see any follow machine
Water Treatment Installations
Can also be adapted to other machines & if you intent please see any follow machine

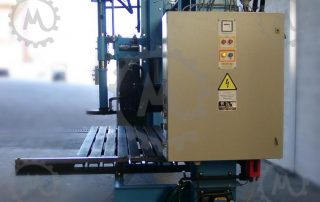

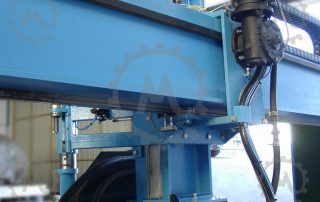

Gallery
Works Machine
Saw Round Profile
By proper program can program the diameter, the rope quantity, the proper higher, the final work quality
