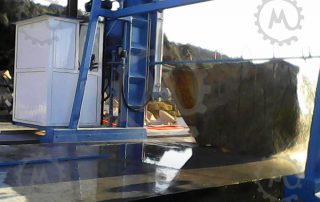

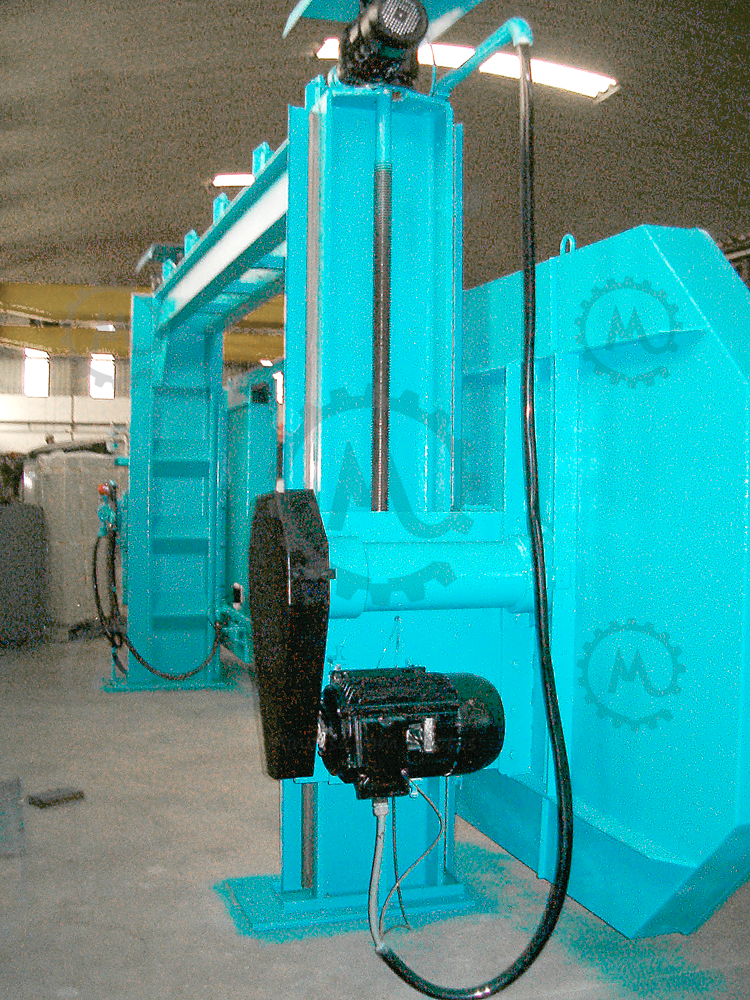

The Z-axis cut can be done in several types of materials, being also possible to change the cut peripheral speed as well as the descent speed.

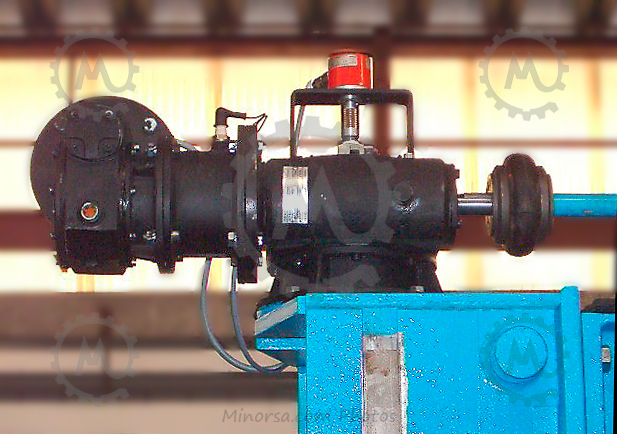

It has double motorization to allow for a fast passage to the next set cut, from the height of blocks to quantities.

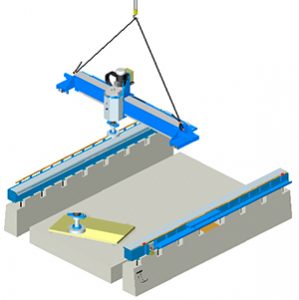

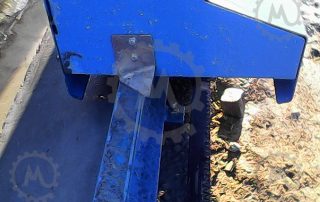

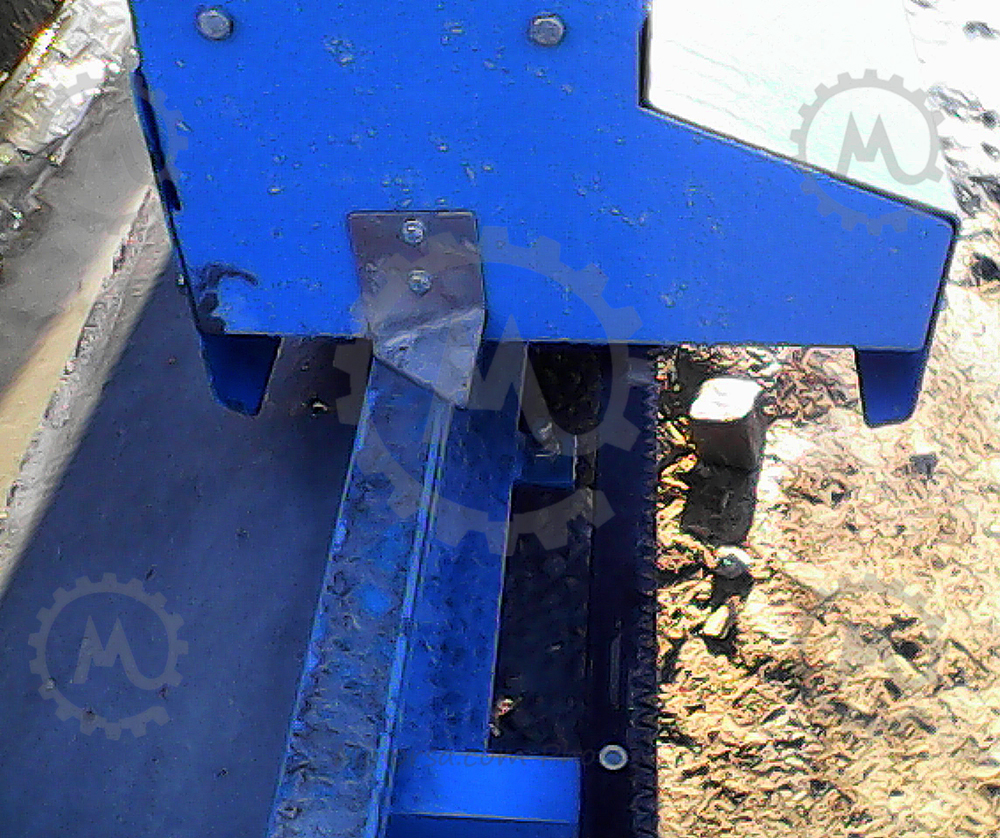

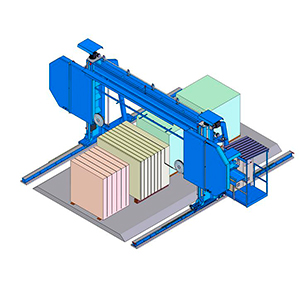

It is possible to choose the length of the tracks for the displacement, allowing to place several blocks to be cut through a programme that can add blocks without the need to stop the automatic cycle.

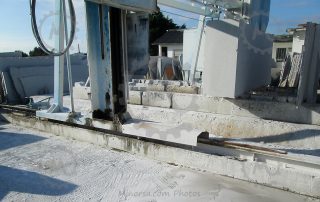

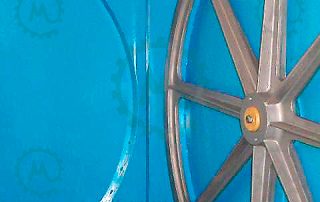

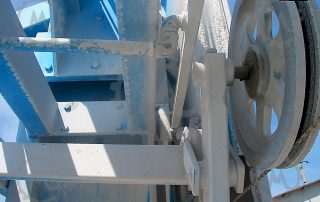

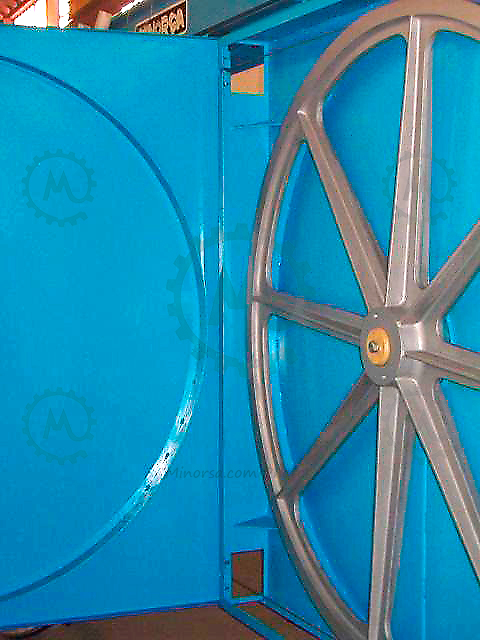

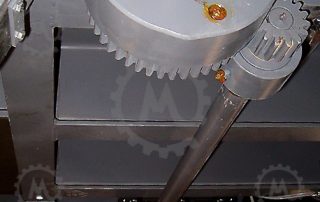

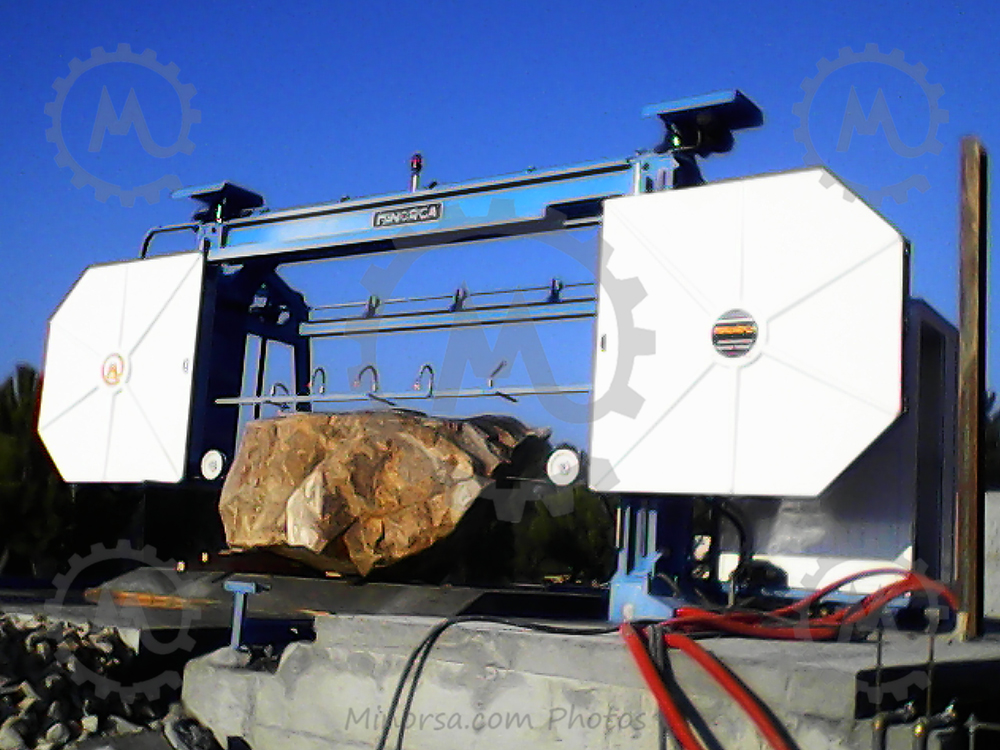

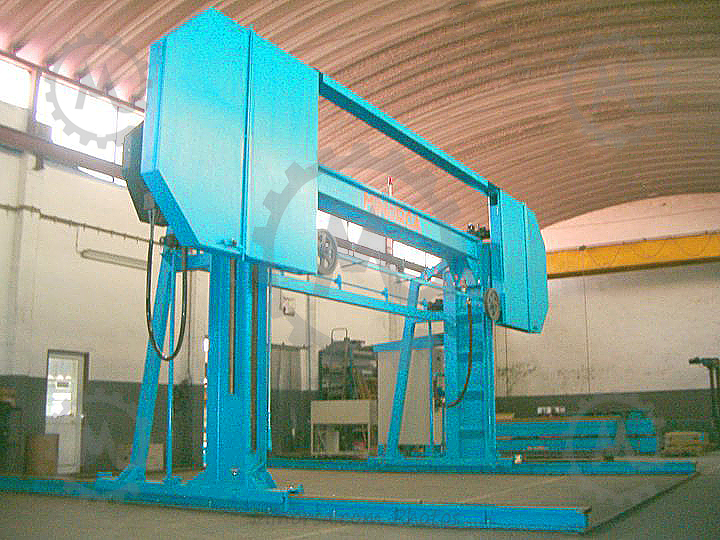

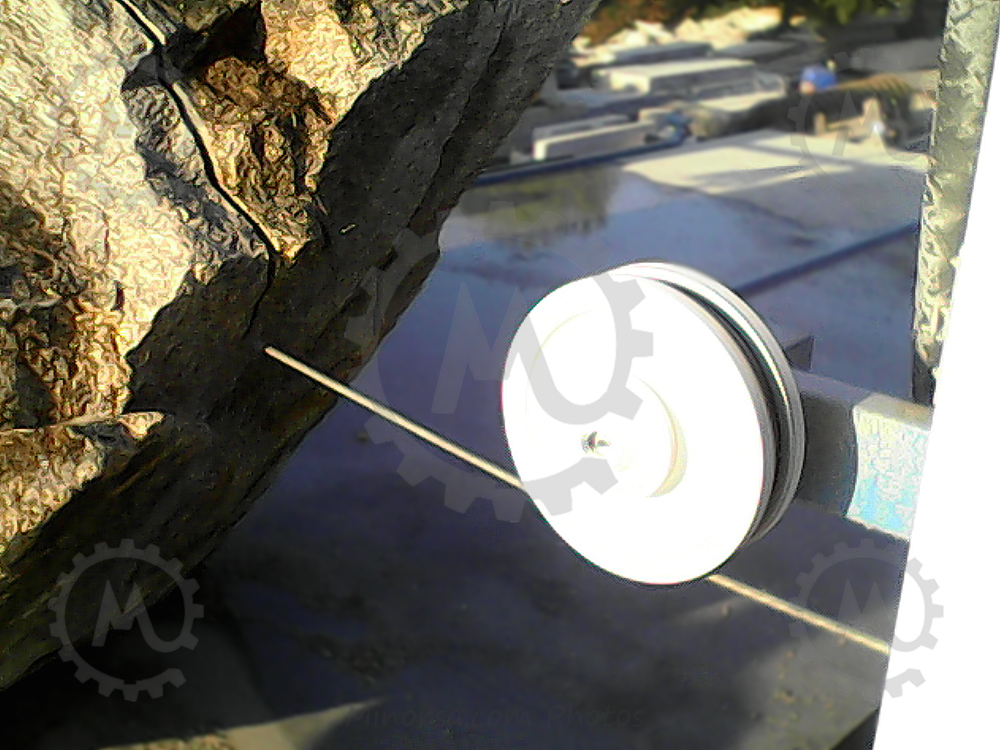

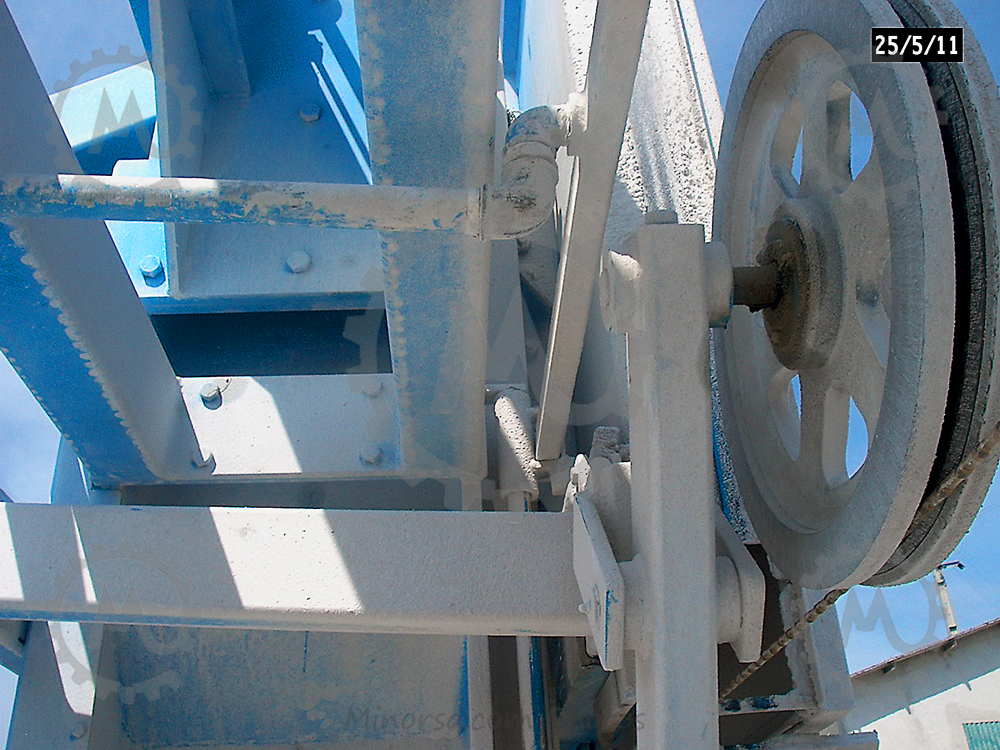

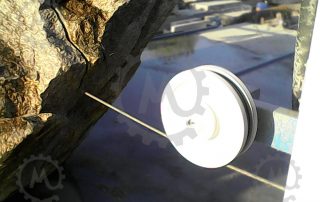

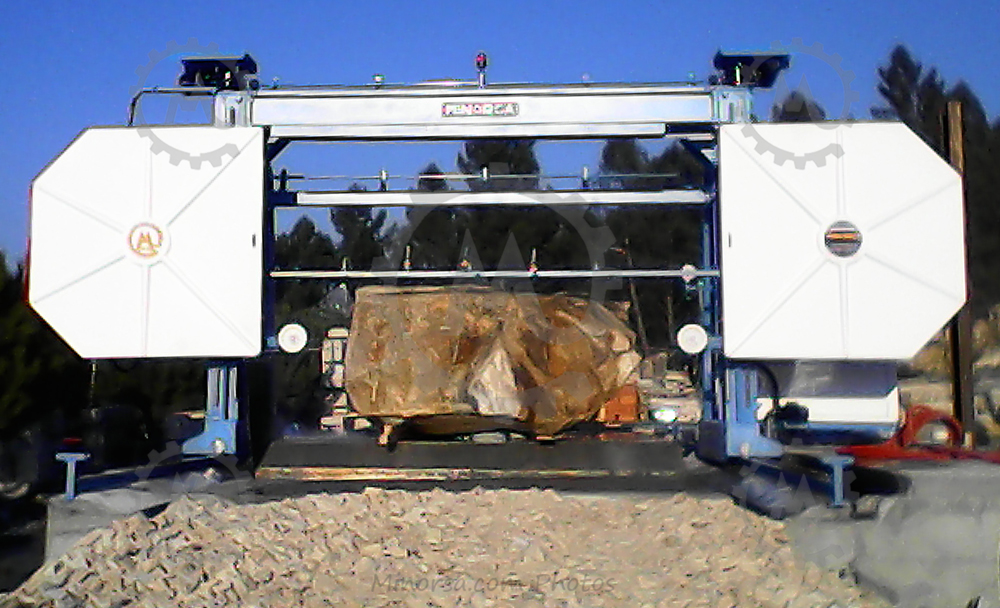

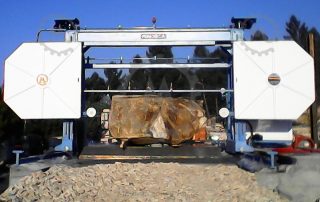

The wheels that make the cable spin are in aluminum, being possible to set its diameter, and the structure is made out of several welded elements, that have gone through an anti-corrosion treatment in order to be possible to work outside.

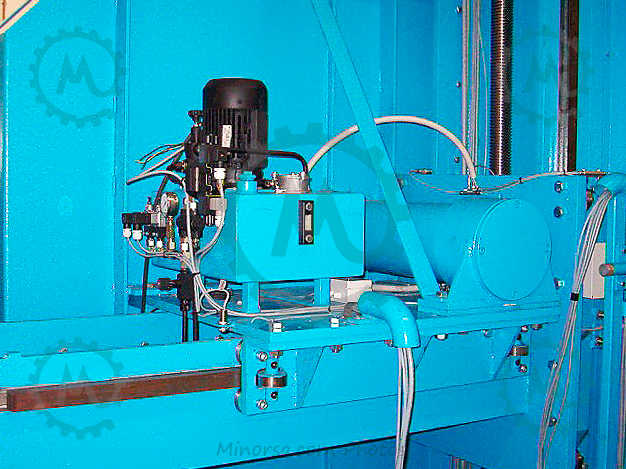

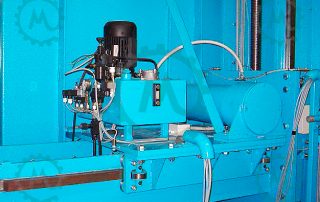

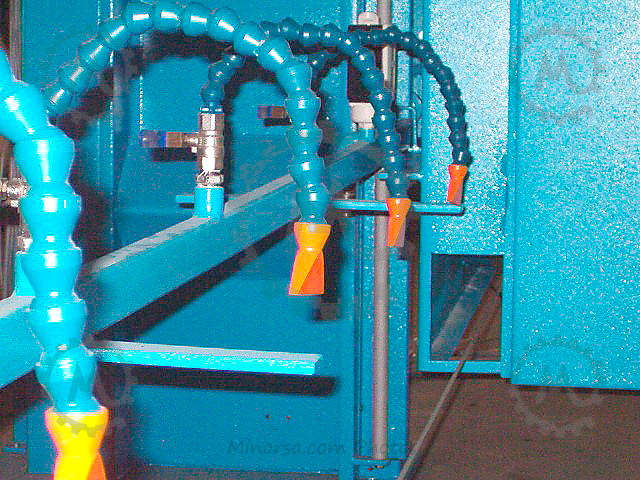

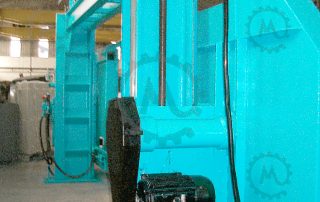

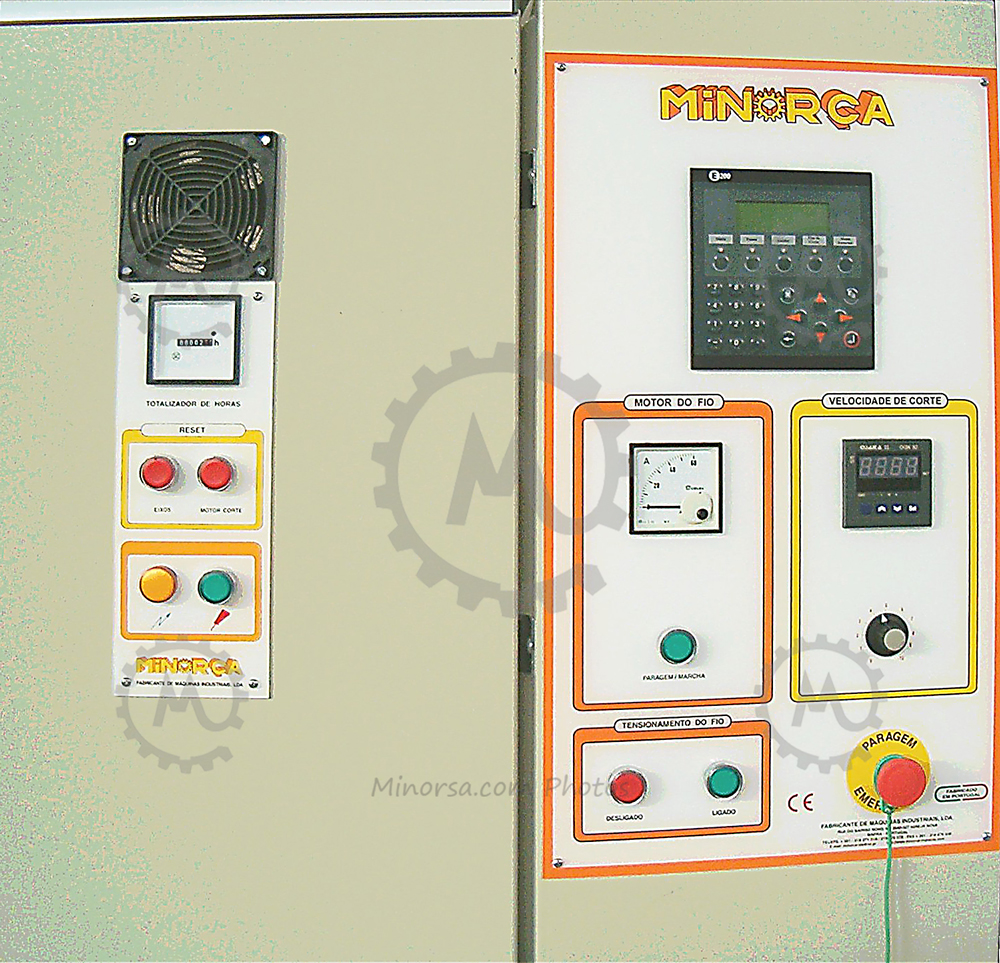

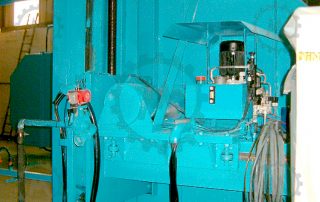

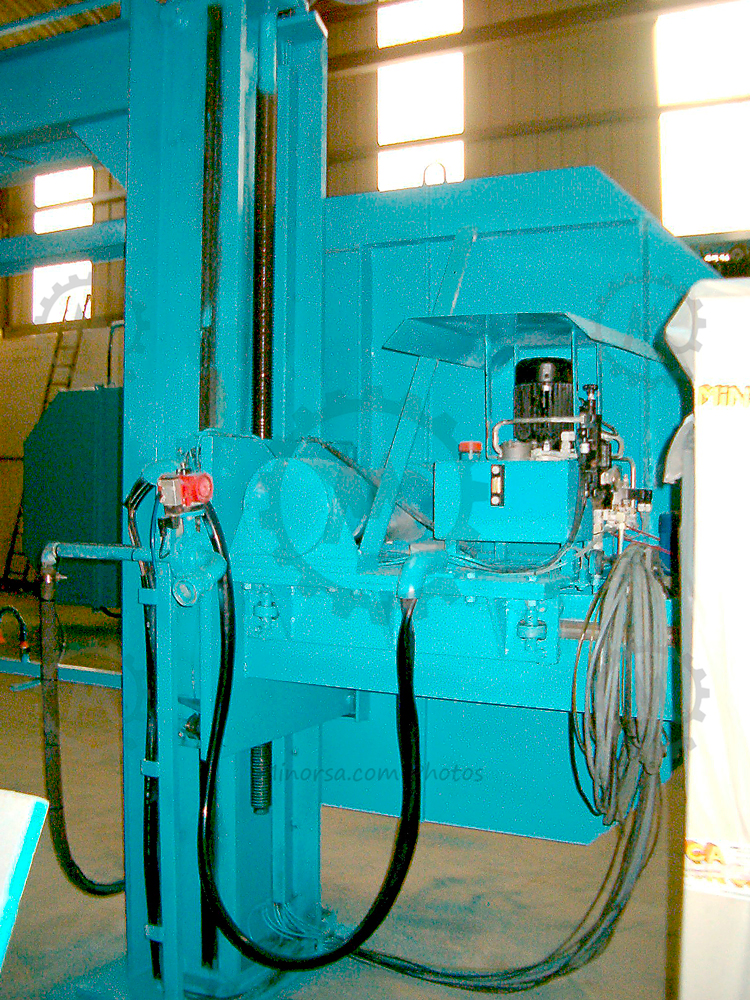

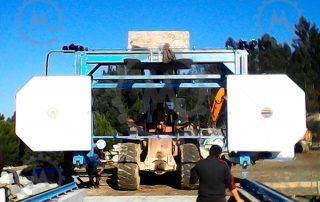

The tensioning of the diamond wire cable is made by a hydraulic system with pressure reading, for a quality cut. It is set to enter in rotation in order to attain an even grinding.
Technical Features
CUTTING GRANITES, MARBLES, SANDSTONES, LIMESTONES, BASALT (ALL IN ONE MACHINE)
✓ Wheel diameter – standart = 2 meters (mt), optional = 2,3 meters (mt) or 2,5 meters (mt)
✓ Maximum cutting wheel height – 2 meters (mt) = 1,990 millimeters (mm) , 2,3 meters (mt) = 2,290 millimeters (mm)
✓ Maximum vertical useful Court – Z = 1,990 mm or 2,490 mm
✓ Cutting capacity – X = 7,300 mm; Y = 3,730 mm (for + optional)
✓ Traction engine power – 15 Kw (20 hp) / 22 kW (30 hp)
✓ Approximate minimum weight – 7,600 Kilos (Kg)
✓ Required maximum height – 4,4 mt + rising wheels
✓ Maximum distance reachable guide wheel – 800 mm
✓ Maximum travel speed cut – 1,8 mt/hour
✓ Maximum ascent rate – 1,34 mt/min
✓ Peripheral speed for cutting – 20 to 38 (or 38 to 50) mt/sec
✓ Hydraulic pressure exerted on the wire – 24 to 45 bar (adjustable and fixed on 1 value)
✓ Permissible length on the wire – 18 to 18.7 mt
✓ Displacement rails standart floor to shift – 5,6 ; 8,5 ; 10 mt
Main Feature & Related Equipment

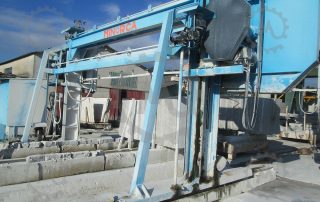

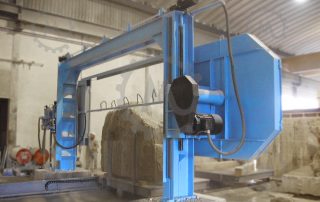

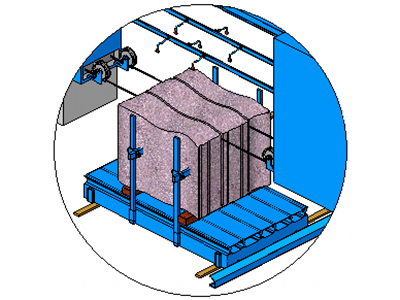

Bi-Wire System

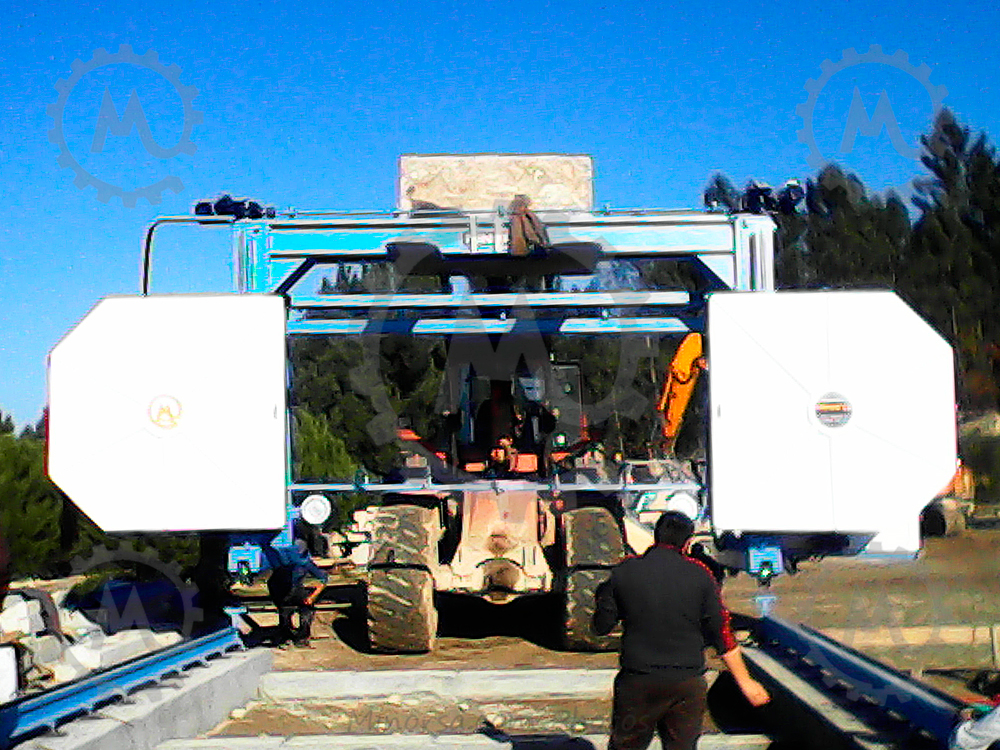

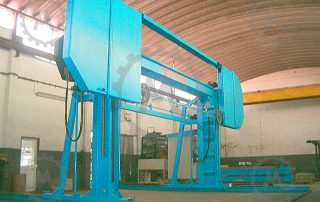

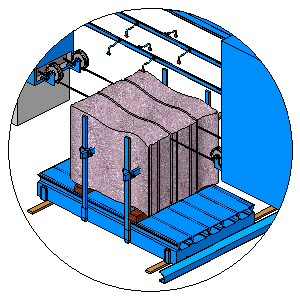

Possibility to make double cut in one movement, allows the positioning of second wheel distance, that system it’s assembled on monowire frame.
Can also be adapted to other machines & if you intent please see any follow machine

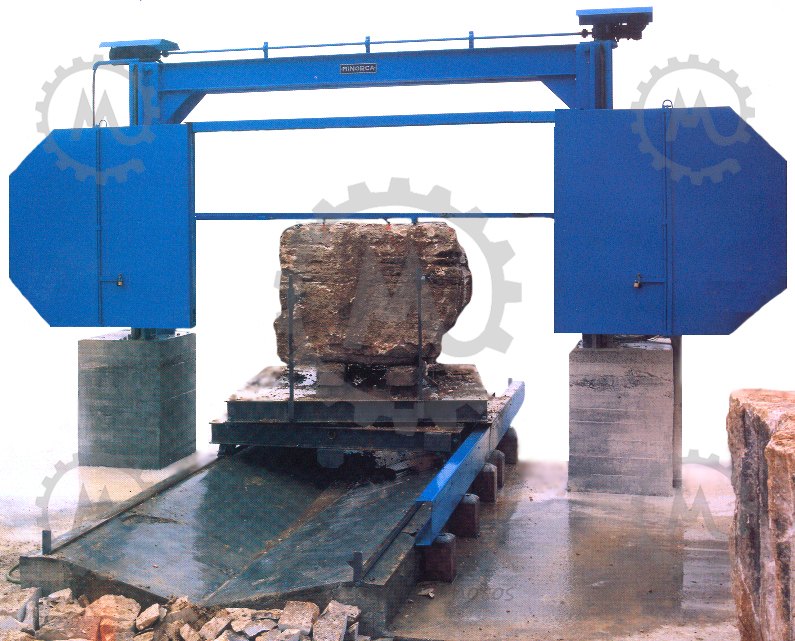

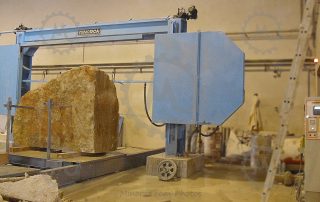

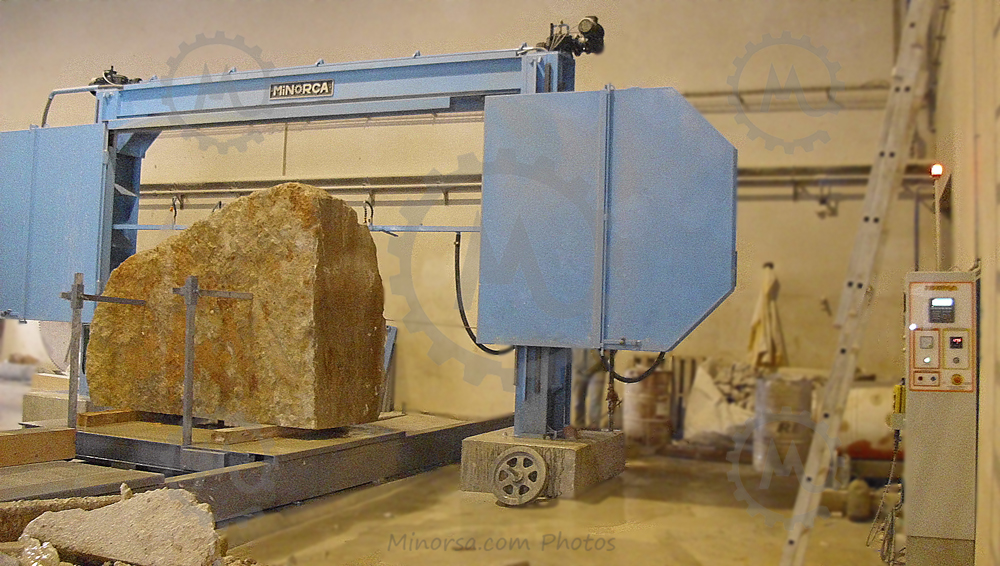

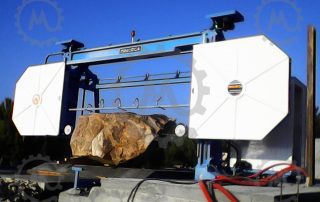

Monowire Cutting Machine

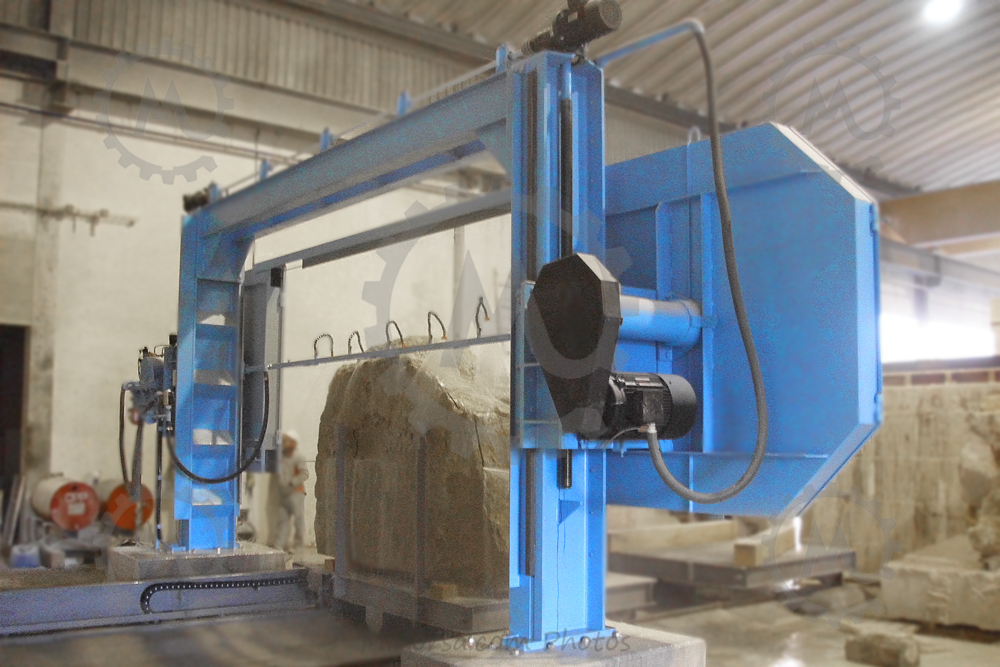

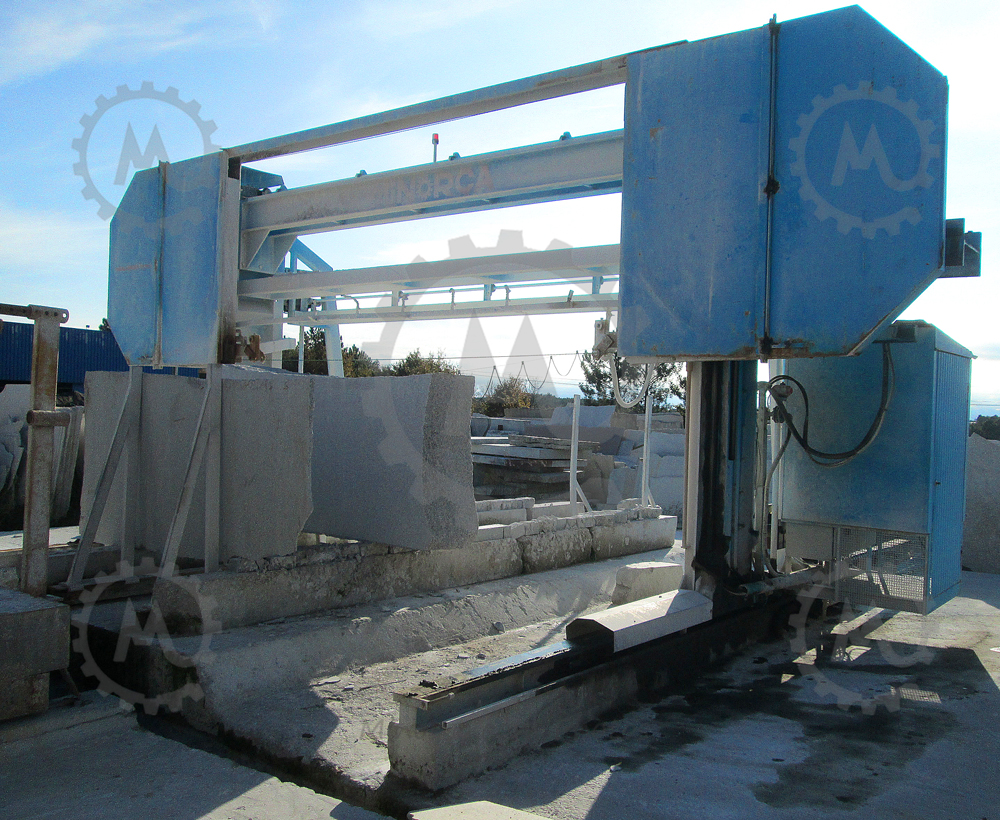

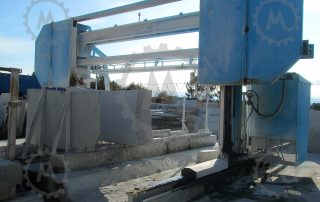

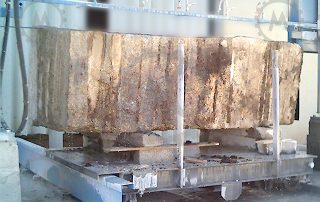

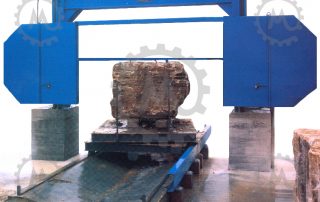

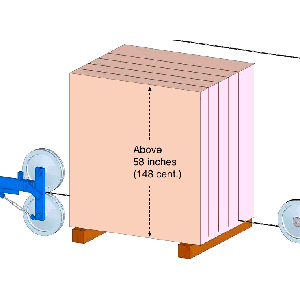

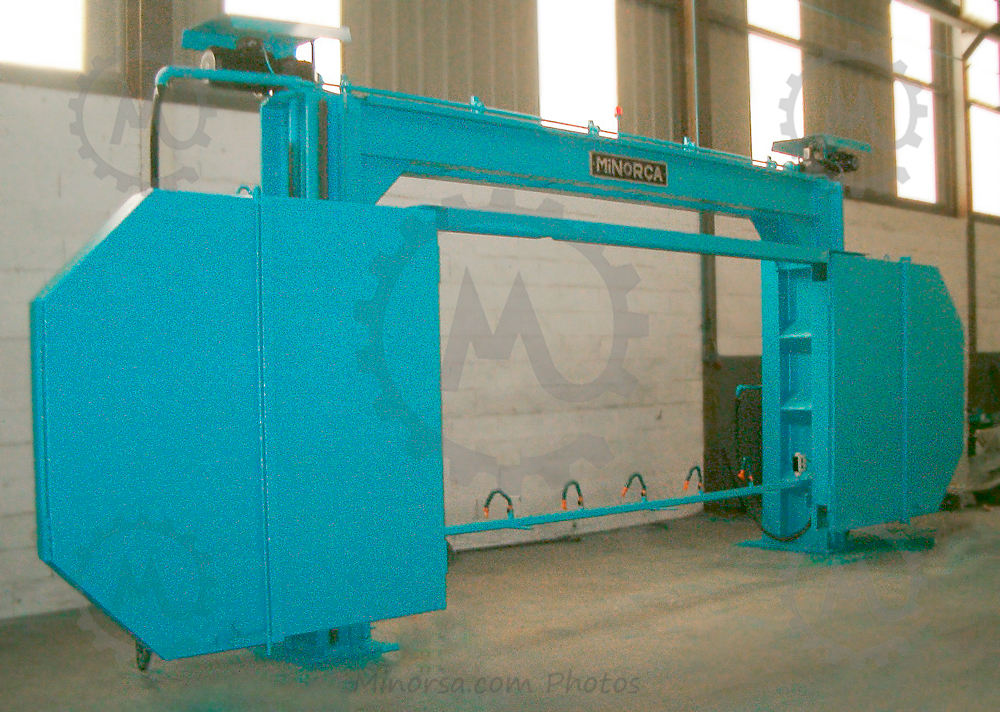

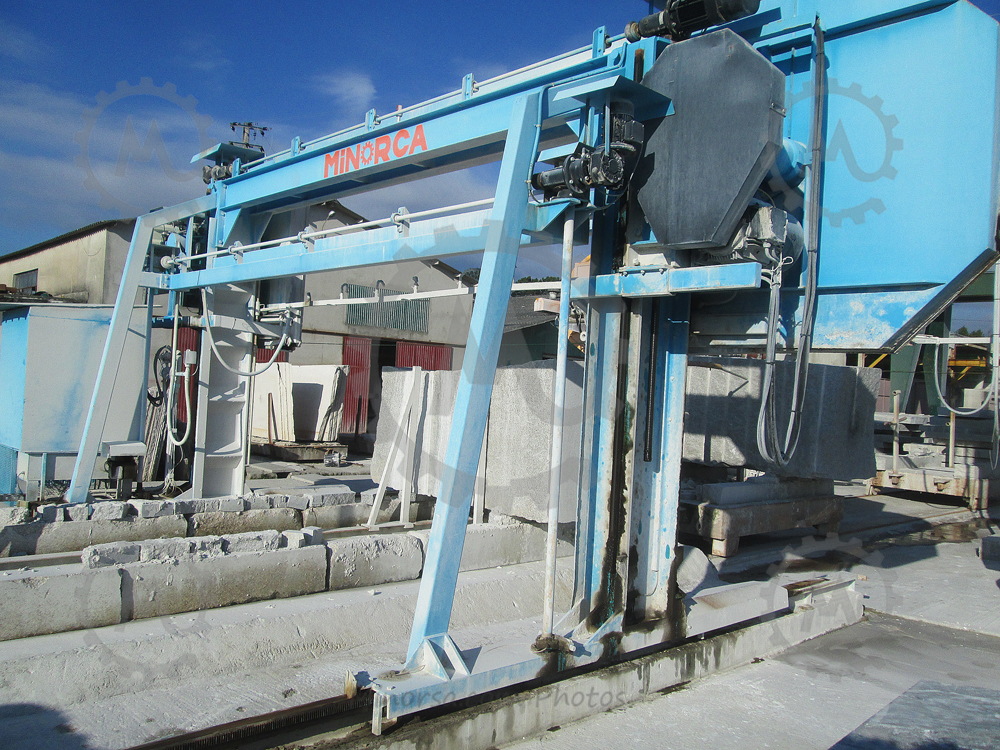

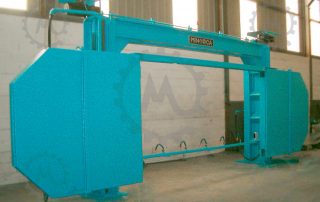

It allows the vertical cut until 89 inch / 226 cm, also can vertical profile and work with Bi-wire system, can work on portico system on several blocks or on trolley system.
Can also be adapted to other machines & if you intent please see any follow machine
Particular Cad Draw Programing

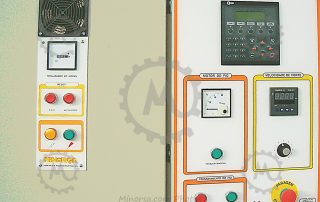

With the internal use of cad system the machines can cut surfaces without outsides recurses
Can also be adapted to other machines & if you intent please see any follow machine

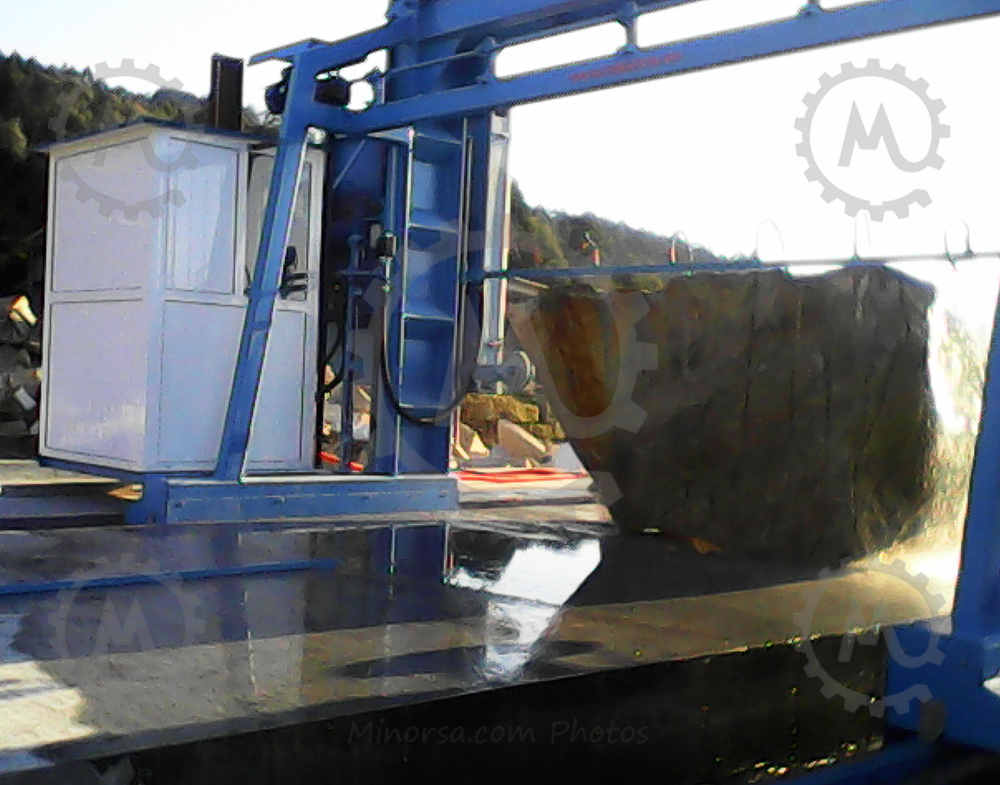

Wire Cutting Process
Can also be adapted to other machines & if you intent please see any follow machine

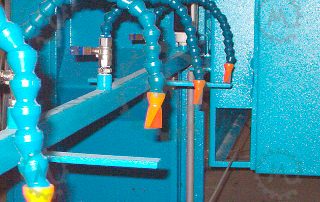

Common Parts
Can also be adapted to other machines & if you intent please see any follow machine

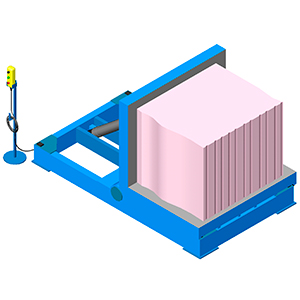

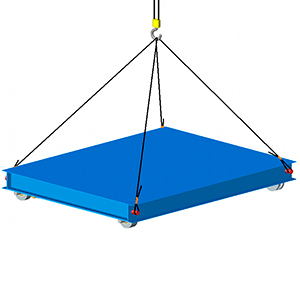

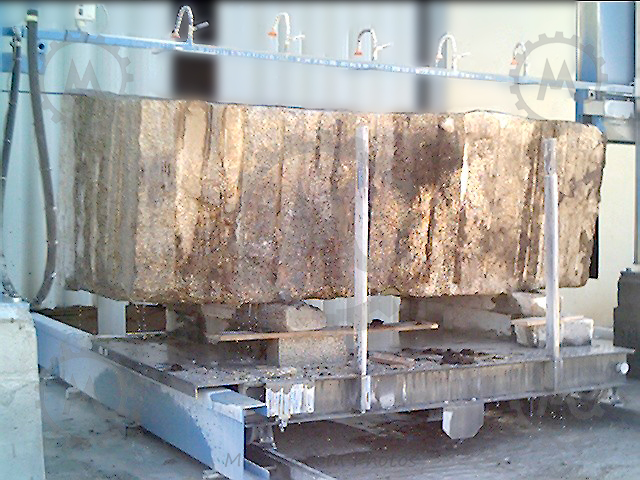

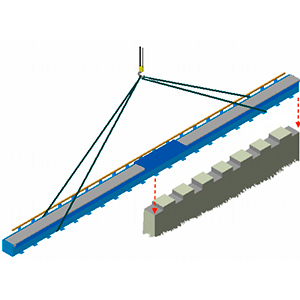

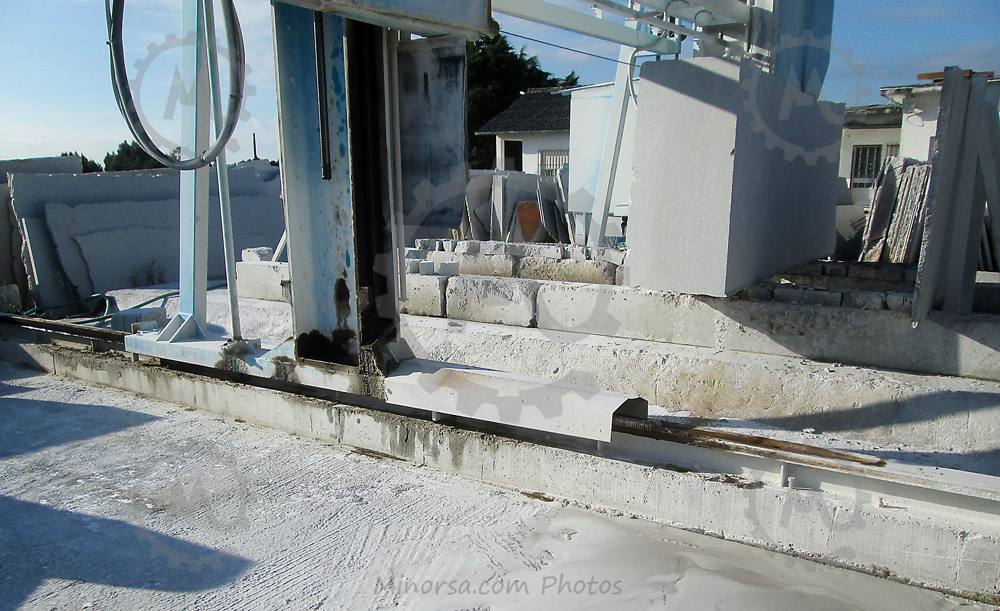

Block Trolley
